| General | |
| CPU | Intel® i3/i5/i7 12/13/14th Desktop 65W，LGA1700 Processor |
| Chipset | Intel® SOC |
| Memory | 2*SO-DIMM DDR4 3200MHz Max 64GB |
| Storage | 2*SATA3.0 1*M.2 Key M (Support SATA3 and PCIe Gen4 x4 for SSD) |
| Expansion Interface | 1*M.2 Key E （Supports WiFi+Bluetooth extension, CNvi and PCIe WiFi6） 1*M.2 KeyB (for4G/5G expansion,3042/52mm) |
| BIOS | AMI BIOS |
| System | Windows 10/11 32bit/64bit/Linux |

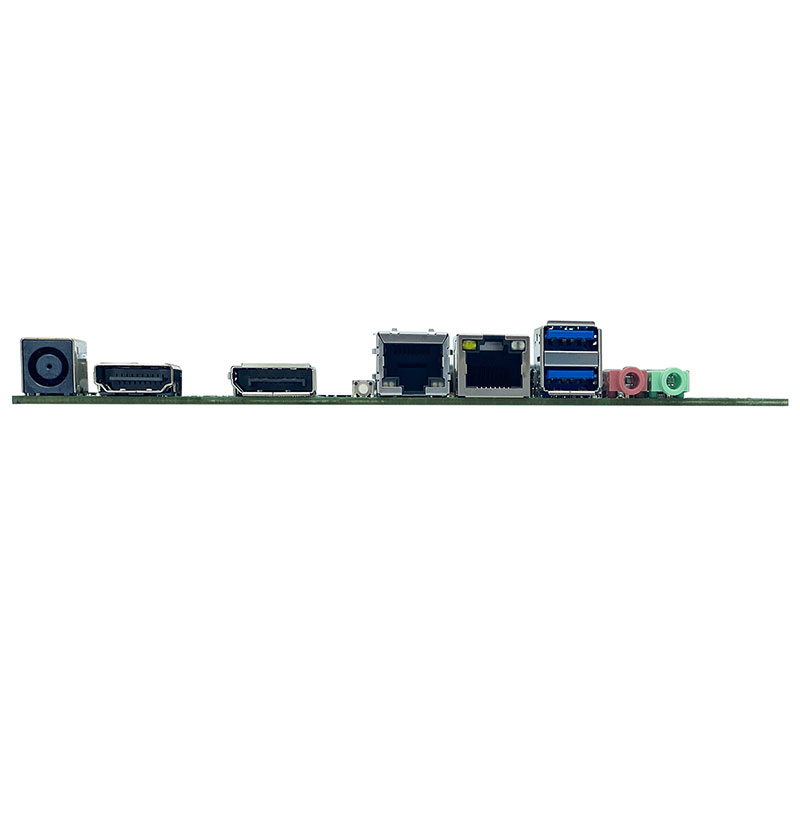

| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 6*COM232（COM2 supports RS232/422/485 as an option ） |
| USB | 2/4*USB3.2；6*USB2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*ATX_PWR Header 1*AT_ATX1 Header （Automatic power-on pin insertion） 1*F-AUDIO Header 1*JAMP1 Header 2*SATA interface 2*HD_PWR Header 1*SYS_FAN Header 1*CPU_FAN Header 1*BKCL Header 1*JFP1 Header 1*INVT Header 1*LVDS_EDP1 Header 1*J_PRINT1 Header 3*F_USB2.0 Header（Extensible 6*USB2.0） 6*COM Header |
| Display | |
| Display Interface | DP 、HDMI、LVDS/EDP1、EDP2(Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12~19V Wide voltage power supply （Give priority to using the 19V adapter） |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

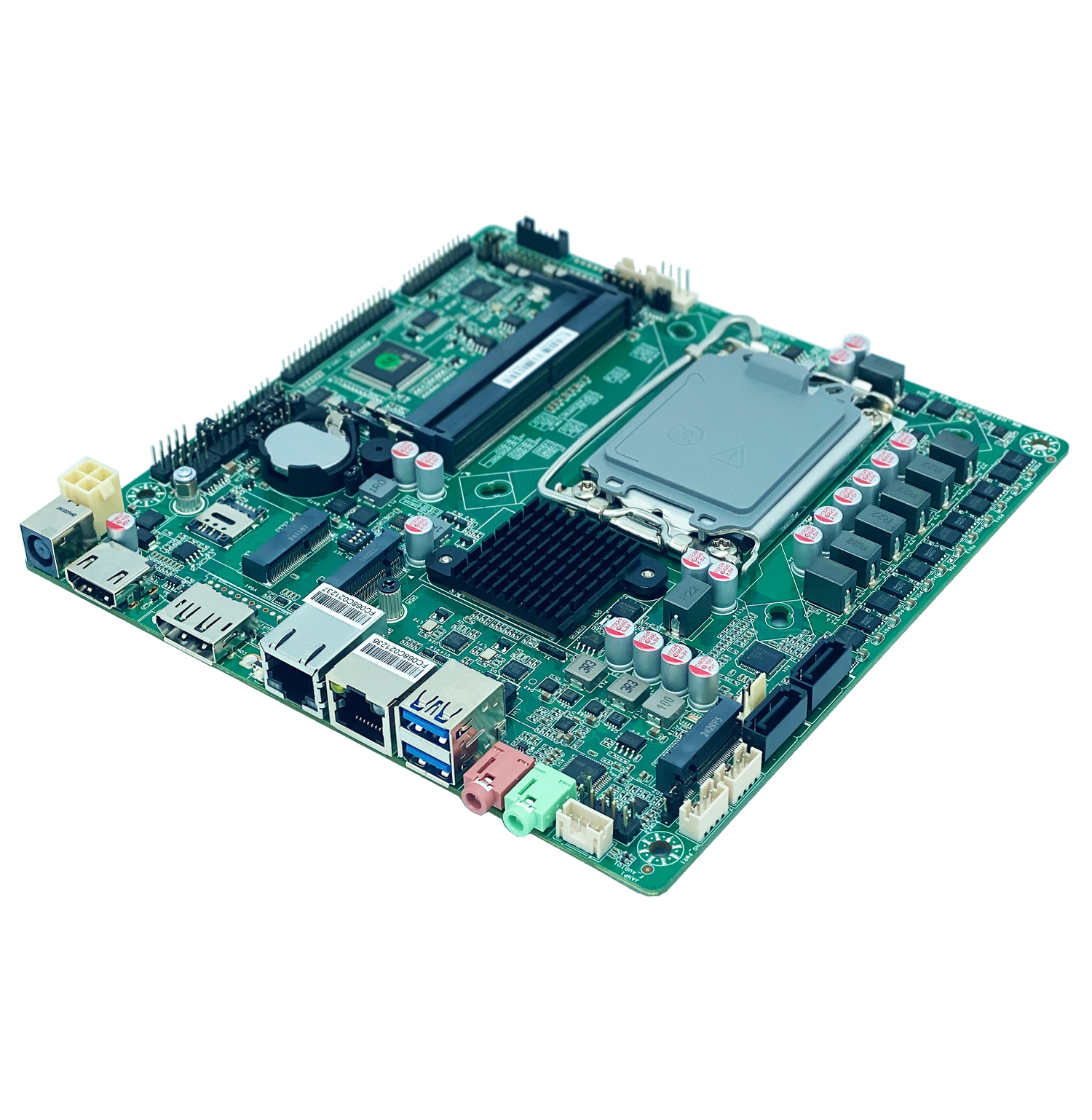

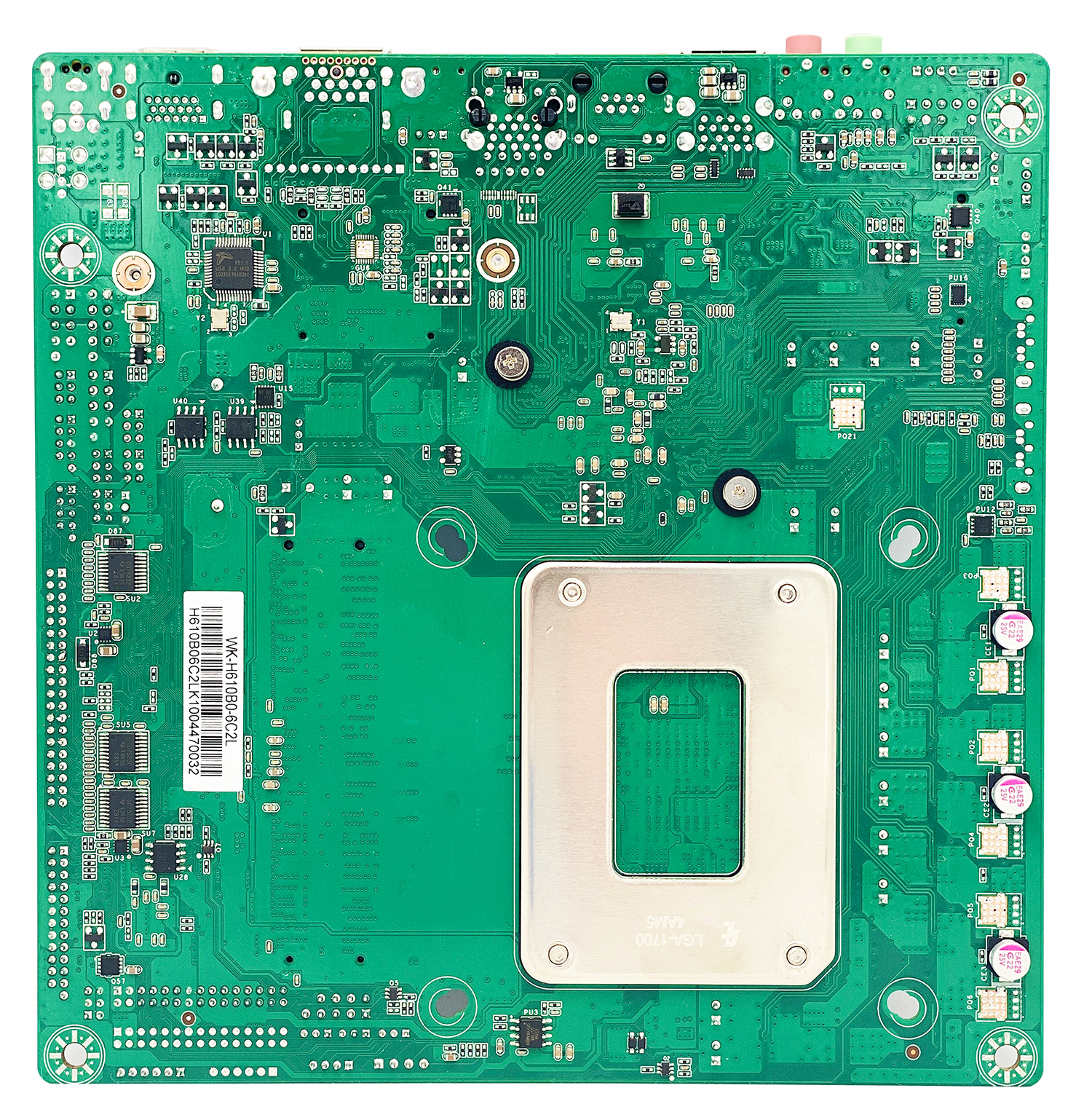

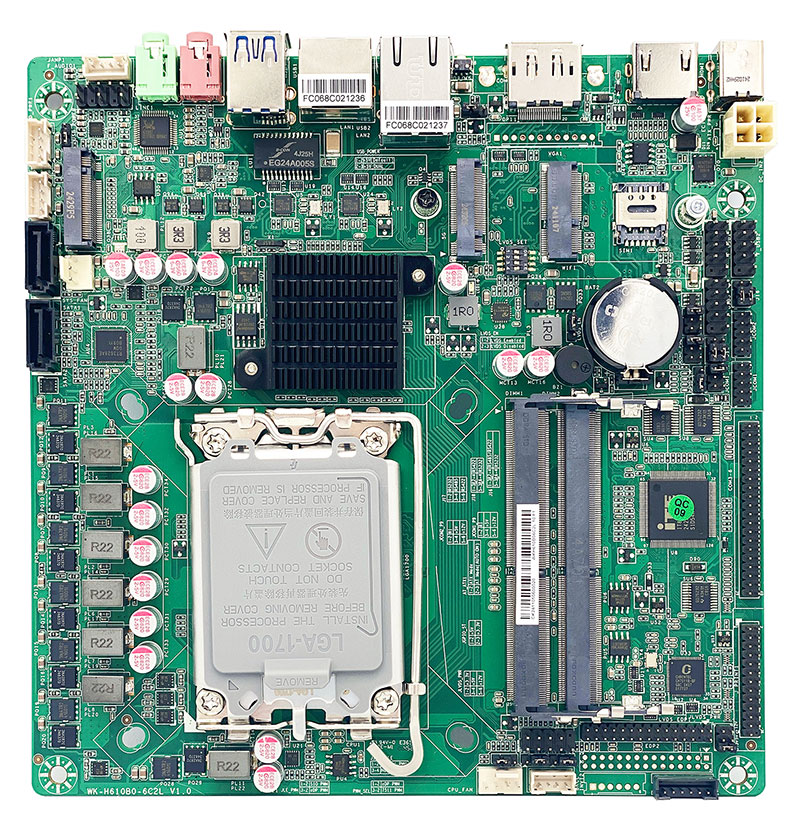

WK-ADLSB0-6C2L
Intel® i3/i5/i7 12/13/14th Desktop 65W，LGA1700 Processor；Intel® SOC；2*SO-DIMM；2/4*USB3.2；6*USB2.0；2*SATA3.0；6*COM232；3*M.2
processor：Intel® i3/i5/i7 12/13/14th Desktop 65W，LGA1700 Processor
chipset：Intel® SOC
Display Intel® HD Graphics
memory：2*SO-DIMM DDR4 3200MHz Max 64GB
Display output： DP 、HDMI、LVDS/EDP1、EDP2(Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M (Support SATA3 and PCIe Gen4 x4 for SSD)
USB:2/4*USB3.2；6*USB2.0
support 6*COM232
On board 1/2 * RTL8111 gigabit network card
Expansion slot：1*M.2 Key E （Supports WiFi+Bluetooth extension, CNvi and PCIe WiFi6）
Expansion slot：1*M.2 KeyB (for4G/5G expansion,3042/52mm) 1*SIM card slot
