| General | |
| CPU | Intel® Alder Lake-N N50, N97, N100, Atom® x7425E, Core i3-N300 Processor |
| Chipset | Intel® SOC |
| Memory | 1*SO-DIMM DDR4 3200MHz Max 16GB |
| Storage | 1*SATA3.0 1*M.2 Key M (Support PCIe x2 for SATA SSD adaptive) |
| Expansion Interface | 1*M.2 Key E （Supports WiFi+Bluetooth extension, supports WiFi6 and CNVi for Wireless） 1*M.2 Key B (Supports 3G/4G expansion, and 5G is optional) 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 10/11 32bit/64bit/Linux |

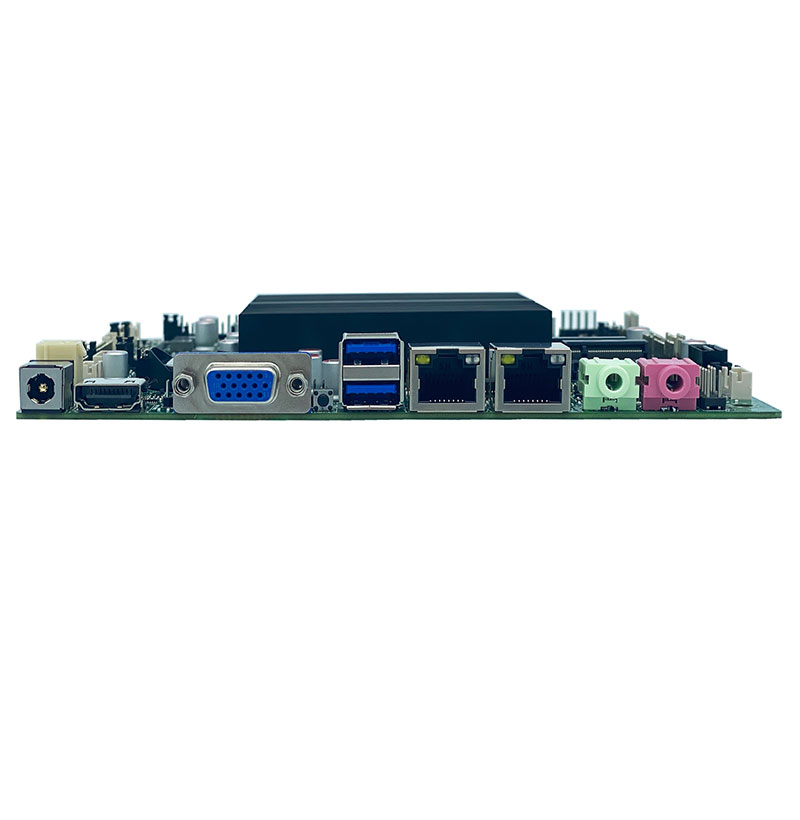

| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 6*COM232 （COM2/COM3 supports RS232/485 as an option,RS422 is optional） |
| USB | 2*USB3.2；8*USB2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*4PIN ATX Header 6*COM232 Header 1*JVGA Header 1*F_AUDIO Header 1*HSPK Header 1*SATA3.0 interface 1*SATA_PWR Header 4*USB2.0 Header（Extensible 8*USB2.0） 1*F_PANEL Header 1*JATX_SEL Header 1*JESPI Header 1*HLPT_GPIO Header 1*PS/2 Header 1*JME Header 2*INVT Header 1*LVDS_EDP1 Header 1*EDP2 Header 1*LCTL1 Header 1*CPU _FAN Header |
| Display | |
| Display Interface | LVDS/EDP1、EDP2/DP、HDMI、VGA(Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

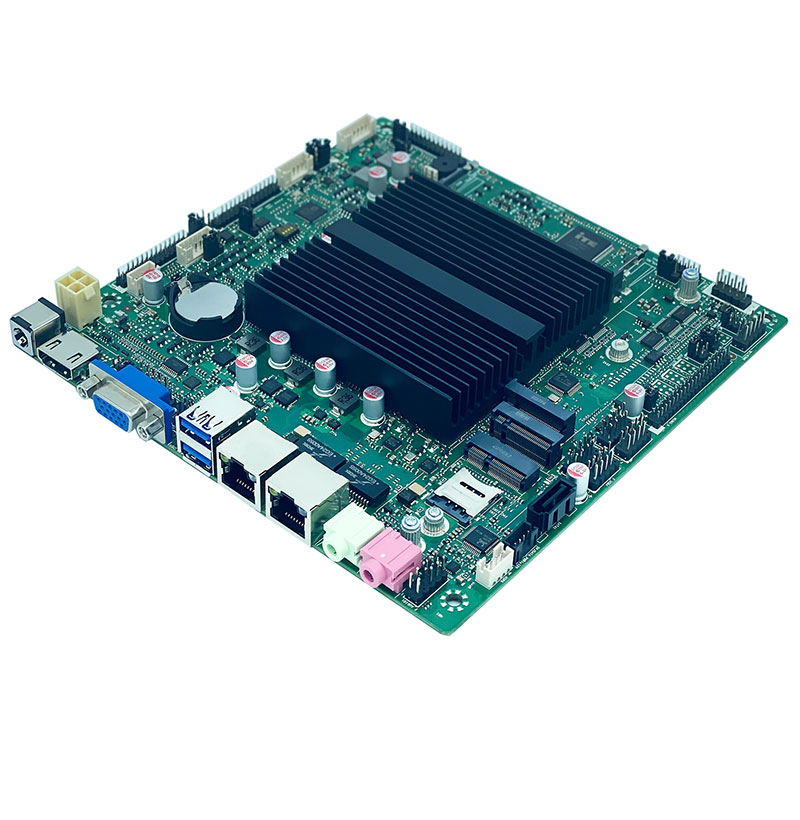

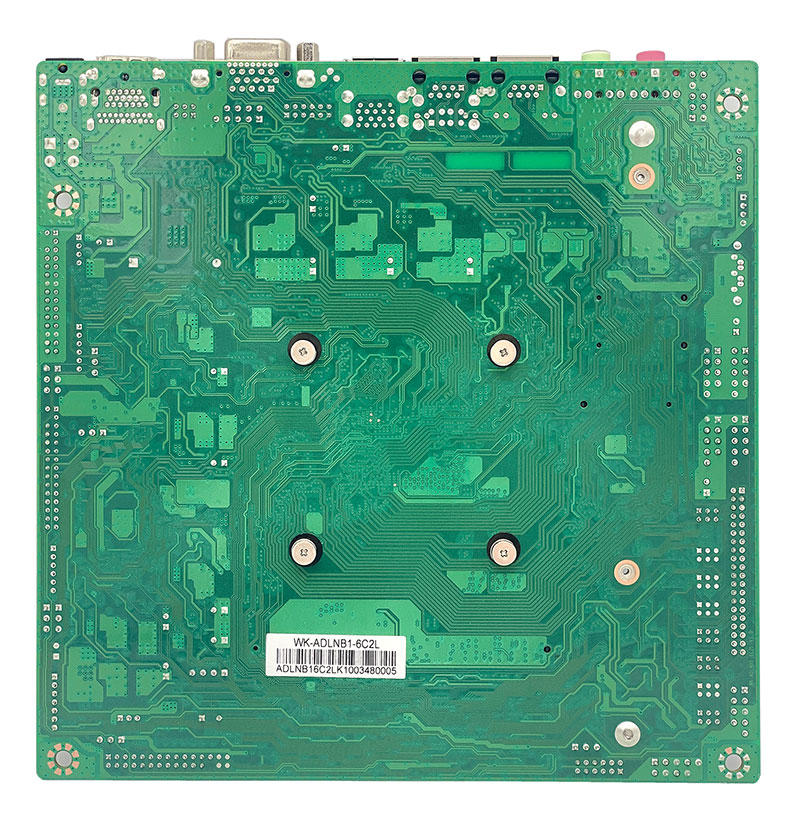

WK-ADLNB1-6C2L
Intel® Alder Lake-N N50, N97, N100, Atom® x7425E, Core i3-N300 Processor；Intel® SOC；1*SO-DIMM；2*USB3.2；8*USB2.0；1*SATA3.0；6*COM232；3*M.2
processor：Intel® Alder Lake-N N50, N97, N100, Atom® x7425E, Core i3-N300 Processor
chipset：Intel® SOC
Display: Intel® UHD Graphics
memory：1*SO-DIMM DDR4 3200MHz Max 16GB
Display output：LVDS/EDP1、EDP2/DP、HDMI、VGA(Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M (Support PCIe x2 for SATA SSD adaptive)
USB:2*USB3.2；8*USB2.0
supports 6*COM232 （COM2/COM3 supports RS232/485 as an option, and RS422 is optional）
On board 1/2 * RTL8111 gigabit network card
Expansion slot：1*M.2 Key E （Supports WiFi+Bluetooth extension, supports WiFi6 and CNVi for Wireless）
Expansion slot：1*M.2 Key B (Supports 3G/4G expansion, and 5G is optional) 1*SIM card slot
