| General | |
| CPU | Intel®8th/10th Whiskey lake-U&Coffeelake-U&Cometlake Processor |
| Chipset | Intel® SOC |
| Memory | 2*SO-DIMM DDR4 2133/2400/2666MHZ Max 64GB |
| Storage | 1*SATA3.0 1*M.2 Key M (Supports SATA and PCIe x4 NVME SSD) |
| Expansion Interface | 1*M.2 Key E （Supports WiFi+Bluetooth extension） 1*M.2 Key B (Supports 3G/4G expansion, and 5G is optional) 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 10/11 32bit/64bit/Linux |
| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 6*COM232 （COM2 supports RS232/485 as an option） |
| USB | 4/6*USB3.1；4*USB2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*4PIN ATX Header 1*VGA Header 1*AUDIO Header 1*SPEAKER Header 1*INVT Header 1*LVDS_EDP1 Header 1*BKCL Header 1*SATA3.0 interface 1*SATA_PWR Header 1*LPT_GPIO Header 1*JATX_SEL Header 1*PS/2 Header 1*DEBUG1 Header 1*F_USB3.1 Header （Extensible 2*USB3.1） 1*F_USB2.0 Header （Extensible 2*USB2.0） 1*F_USB2.0 Header （Extensible 2*USB2.0） 1*F_PANEL Header 6*COM232 Header 2*FAN Header |
| Display | |
| Display Interface | VGA 、HDMI、EPD2、LVDS/EDP1(Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

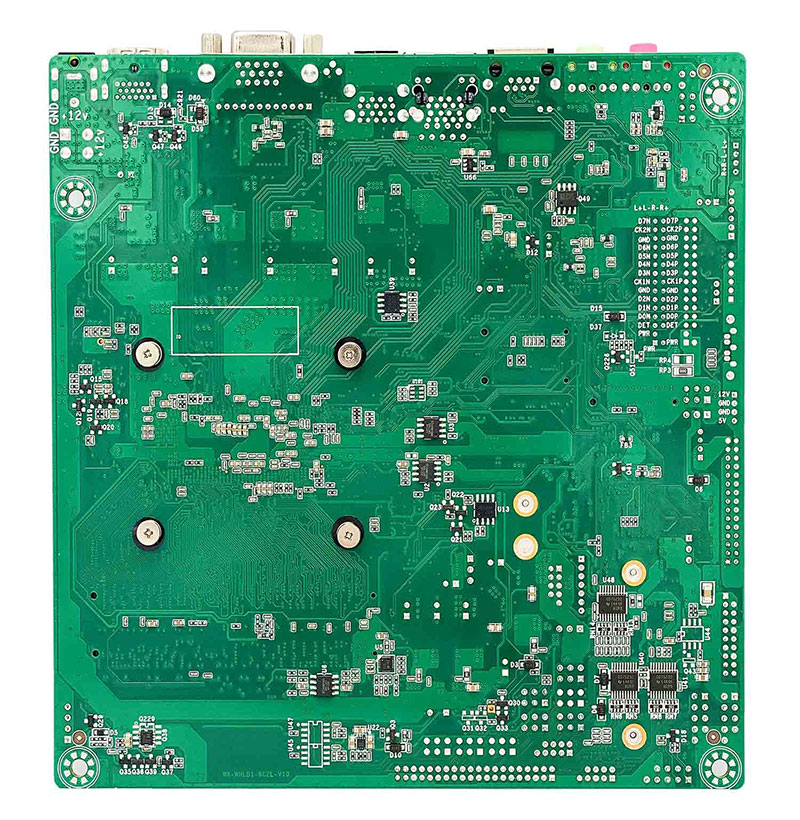

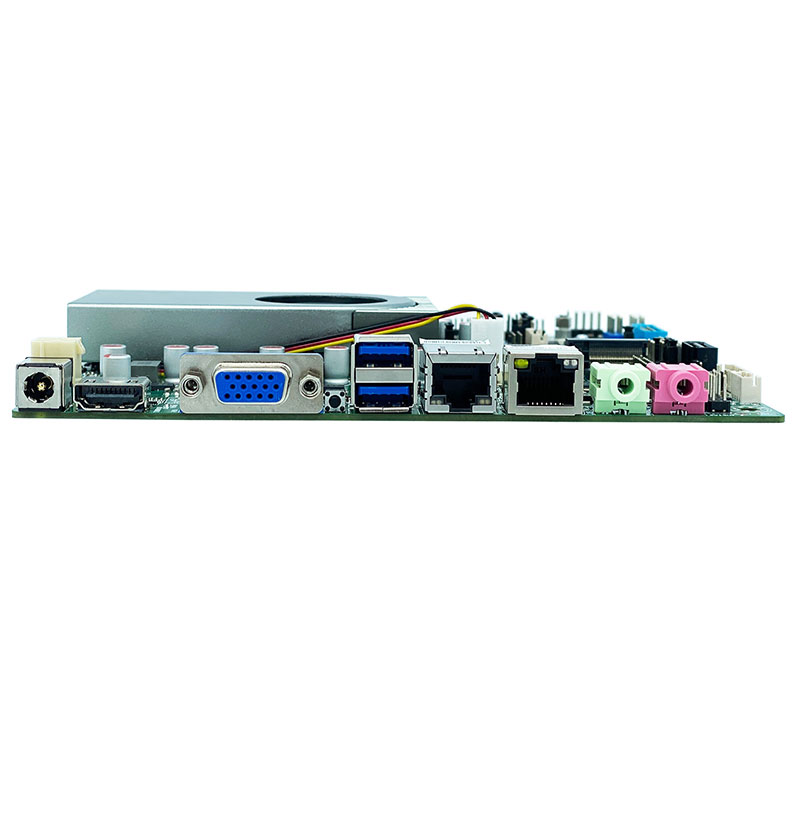

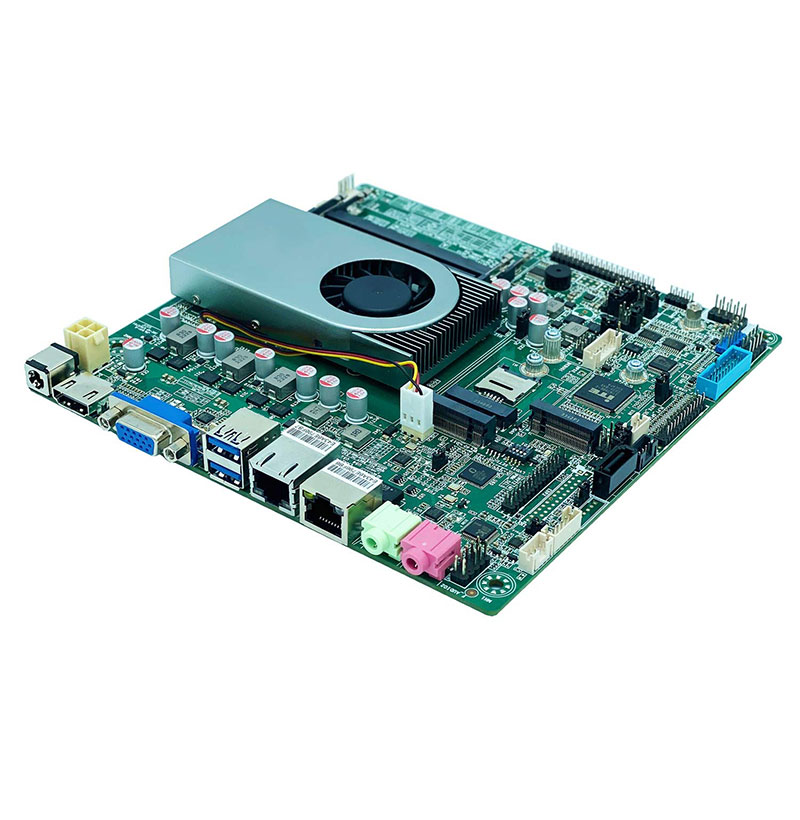

WK-WHLB1-6C2L
Intel®8th/10th Whiskey lake-U&Coffeelake-U&Cometlake Processor；Intel® SOC；2*SO-DIMM；4/6*USB3.1；4*USB2.0；1*SATA3.0；6*COM232；3*M.2
processor：Intel®8th/10th Whiskey lake-U&Coffeelake-U&Cometlake Processor
chipset：Intel® SOC
Display: Intel® UHD Graphics
memory：2*SO-DIMM DDR4 2133/2400/2666MHZ Max 64GB
Display output：VGA 、HDMI、EPD2、LVDS/EDP1(Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M (Supports SATA and PCIe x4 NVME SSD)
USB:4/6*USB3.1；4*USB2.0
supports 6*COM232 （COM2 supports RS232/485 as an option）
On board 1/2 * RTL8111 gigabit network card
Expansion slot：1*M.2 Key E （Supports WiFi+Bluetooth extension）
Expansion slot：1*M.2 Key B (Supports 3G/4G expansion, and 5G is optional) 1*SIM card slot
