| General | |
| CPU | Intel® Sky lake-U/ Kaby lake-U/Kaby lake R Processor，FCBGA1356 |
| Chipset | Intel® SOC |
| Memory | 2*SO-DIMM DDR4 2133/2400MHz Max 32GB |
| Storage | 1*SATA3.0 1*M.2 Key M (Supports PCIe X4/ SATA SSD adaptive) |
| Expansion Interface | 1*Mini_PCIe （Support Wifi+Bluetooth / 4G expansion module） 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 7/10/11 32bit/64bit/Linux |
| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 6*COM232 （COM2 supports RS232/485 as an option） |
| USB | 4*USB 3.0, 4/6*USB 2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*ATX Header 1*HDMI Header 1*VGA Header 1*F_AUDIO Header 1*SPEAKER Header 2*INVERT Header 1*EDP2 Header（VGA and EDP2 hardware are optional） 1*LVDS_EDP1 Header 1*SATA3.0 interface 1*SATA_PWR Header 1*BKCL1 Header 1*DEBUG Header 1*PS/2 Header 2*USB2.0 Header（Extensible 4*USB2.0） 1*USB3.0 Header（Extensible 2*USB3.0） 6*COM232 Header 1*LPT打印 Header 1*F-PANEL Header 1*GPIO Header 2*FAN Header 1*AUTO_ON Header |
| Display | |
| Display Interface | VGA/EDP2、LVDS/EDP1、HDMI(Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

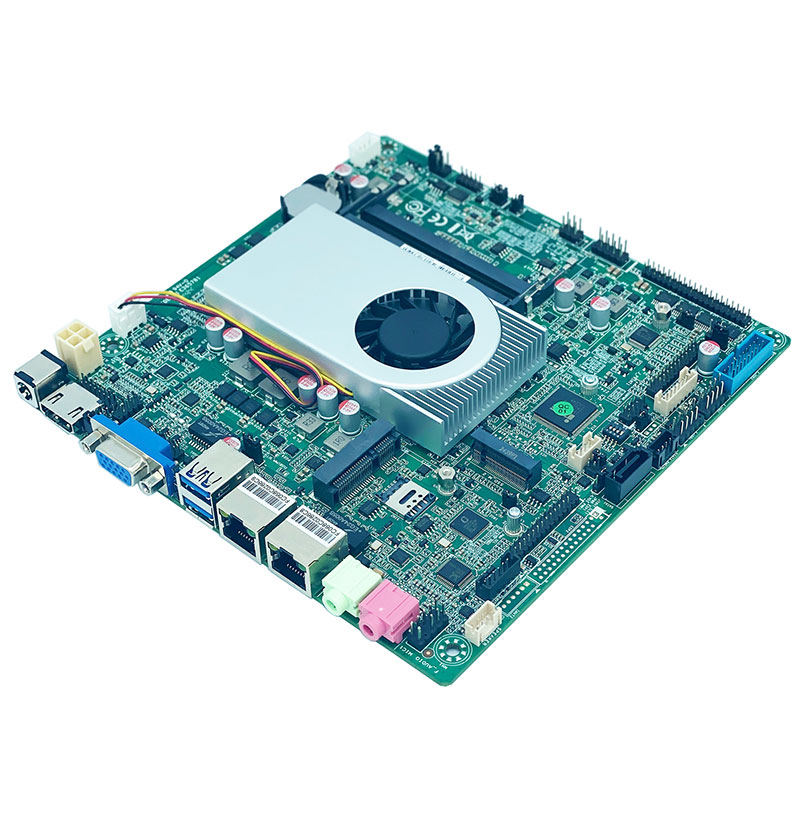

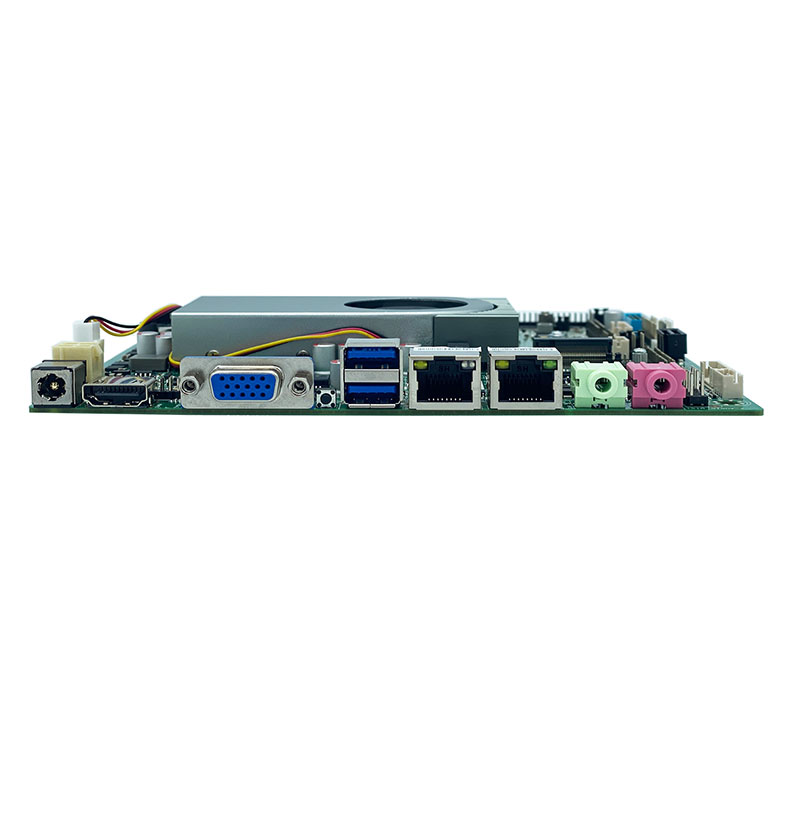

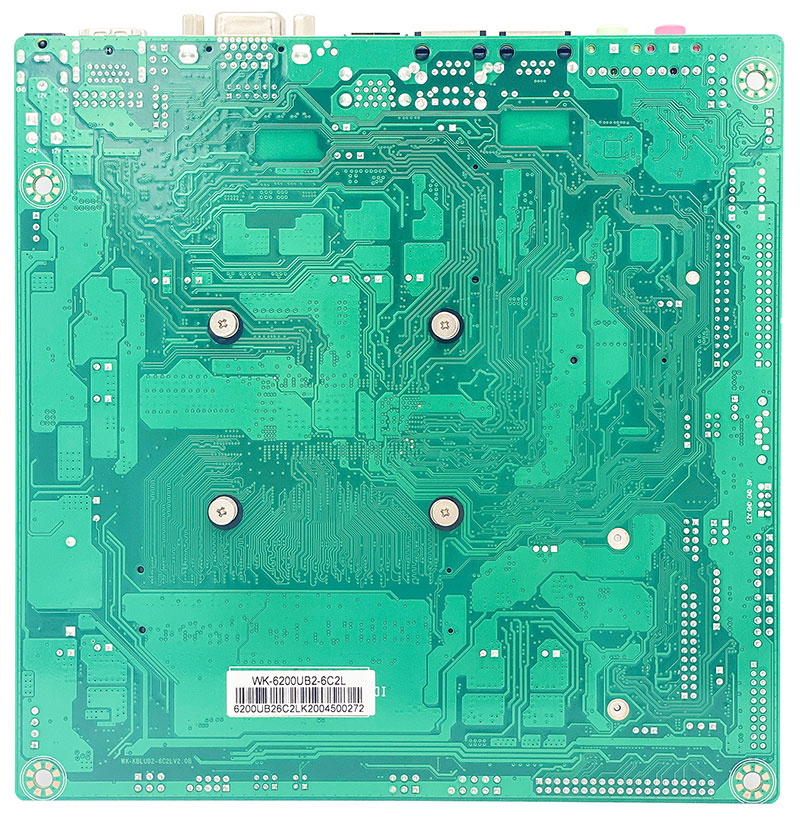

WK-KBLUB2-6C2L
Intel® Sky lake-U/ Kaby lake-U/Kaby lake R Processor，FCBGA1356；Intel® SOC；2*SO-DIMM；4*USB3.0；4/6*USB2.0；1*SATA3.0；6*COM232；1*M.2
processor：Intel® Sky lake-U/ Kaby lake-U/Kaby lake R Processor，FCBGA1356
chipset：Intel® SOC
Display: Intel® HD Graphics
memory：2*SO-DIMM DDR4 2133/2400MHz Max 32GB
Display output：VGA/EDP2、LVDS/EDP1、HDMI(Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M ( Supports PCIe X4/ SATA SSD adaptive)
USB:4*USB3.0；4/6*USB2.0
supports 6*COM232 （COM2 supports RS232/485 as an option）
On board 1/2*RTL8111 gigabit network card
Expansion slot：1*Mini_PCIe （Support Wifi+Bluetooth / 4G expansion module） 1*SIM card slot
