| General | |
| CPU | Intel® 2/3th M and U series Processor |
| Chipset | Mobile Intel 6/7 Series Chipset Family SKUs |
| Memory | 1*SODIMM DDR3/DDR3L 1333/1600 MT/s;Max 8GB |
| Storage | 1*SATA3.0 1*mSATA(Supports SATA SSD expansion modules) |
| Expansion Interface | 1*Mini_PCIe （Support Wifi+Bluetooth/4G expansion module ） 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 7/10/11 32bit/64bit/Linux |

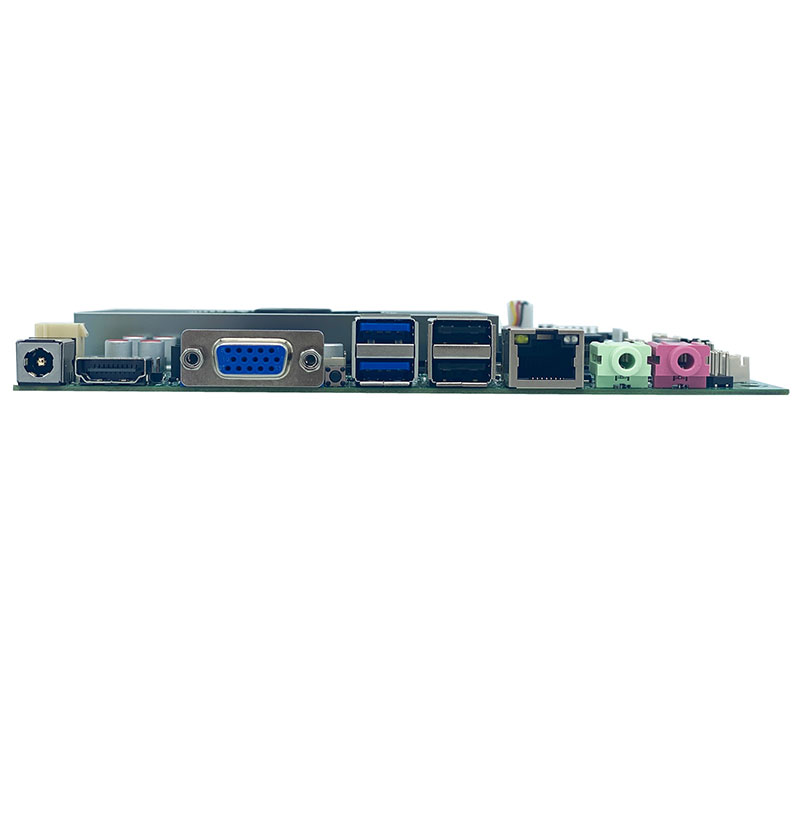

| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 2/6*COM232 |
| USB | 2*USB 3.0, 8/10*USB 2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 2*eDP Header 1*VGA Header 1*HDMI Header 2*COM232 Header 1*SPEAKER Header 3*USB2.0 Header（Extensible 6*USB2.0） 1*ATX Header 1*JPS1 Header 1*F-PANEL Header 1*AUTO-ON Header 2*FAN Header 1*SATA_PWR Header 1*SATA interface 1*GPIO Header 1*F-AUDIO Header 1*PRIN1 Header |
| Display | |
| Display Interface | VGA、HDMI、eDP1、eDP2(Support 2 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

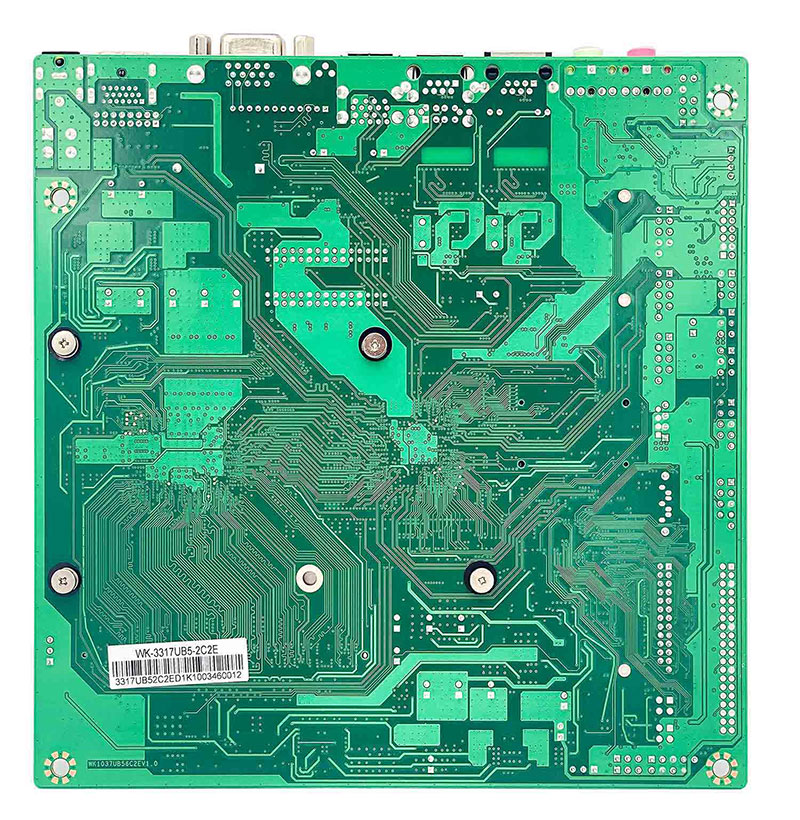

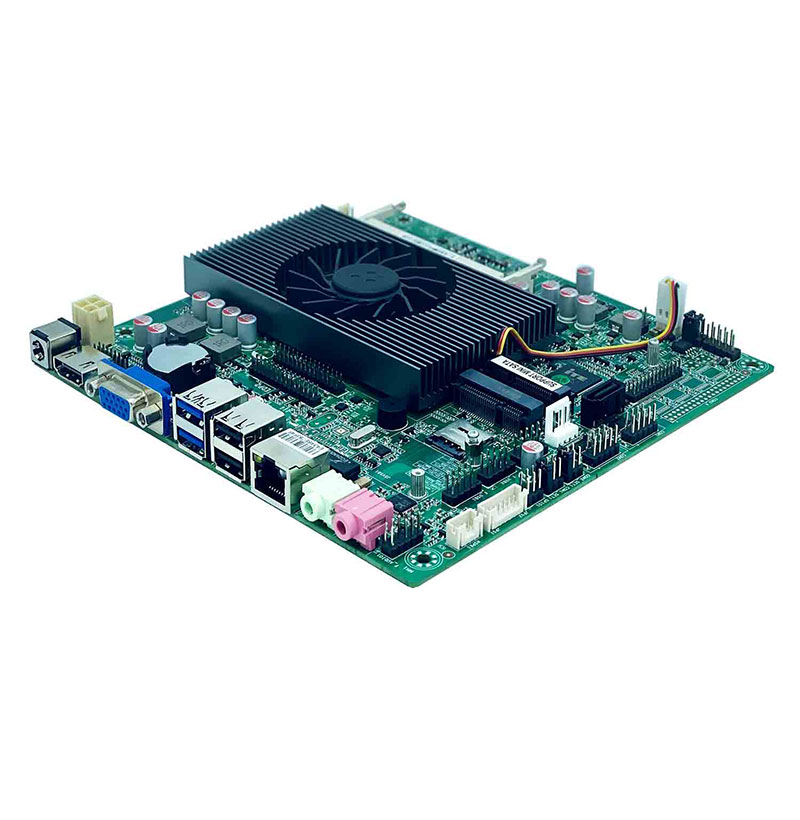

WK-1037UB5-6C2E
Intel® 2/3th M and U series Processor ；Mobile Intel 6/7 Series Chipset Family SKUs；1*SO-DIMM；2*USB3.0；8/10*USB2.0；1*SATA3.0；1*mSATA；6*COM232
processor：Intel® 2/3th M and U series Processor
chipset：Mobile Intel 6/7 Series Chipset Family SKUs
Display: Intel® HD Graphics
memory：1*SODIMM DDR3/DDR3L 1333/1600 MT/s;Max 8GB
Display output：VGA、HDMI、eDP1、eDP2(Support 2 display synchronous/asynchronous output)
storage：1*SATA3.0；1*mSATA(Supports SATA SSD expansion modules)
USB:2*USB3.0；8/10*USB2.0
supports 2/6*COM232
On board 1/2 * RTL8111 gigabit network card
Expansion slot：1*Mini_PCIe （Support Wifi+Bluetooth/4G expansion module ） 1*SIM card slot
