| General | |
| CPU | Intel® 8/10th Generation Intel ® Core™ U-series Wiskeylake-U and Coffeelake-U 15~28W cpu，FCBGA1528 |
| Chipset | Intel® SOC |
| Memory | 1*SO-DIMM DDR4 2400/2666MHz Max 16GB |
| Storage | 1*SATA3.0 1*M.2 Key M (Supports PCIex4 and SATA3 for SSD) |
| Expansion Interface | 1*M.2 Key A (Supports PCIe x1 and USB 2.0 for Wireless+Bluetooth) 1*M.2 Key B （Supports SATA3 and USB for SSD or 4G） 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 10/11 32bit/64bit/Linux |
| I/O Interface | |
| Ethernet | 1*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 4*COM232 |
| USB | 4*USB3.1；6*USB2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*2PIN Header 1*LPT_PWR Header 3*COM Header 3*F_USB2.0 Header（Expandable 6*USB2.0） 1*CASH Header（GPIO cash box, with detection function 12V/24V, determined by the adapter） 1*LVDS_EDP1 Header 1*EDP2 Header 2*INVT1 Header 1*SATA Header 1*SATA_PWR Header 1*FAN Header 1*F_PANEL Header 1*JATX_JPWM_SEL Header 1*JPS1 Header 1*HGPIO Header 1*SPEAKER Header 1*F-AUDIO Header |
| Display | |
| Display Interface | LVDS1/EDP1、EDP2、HDMI (Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 102mmX146mm |
| Power Input | DC 12V-24V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

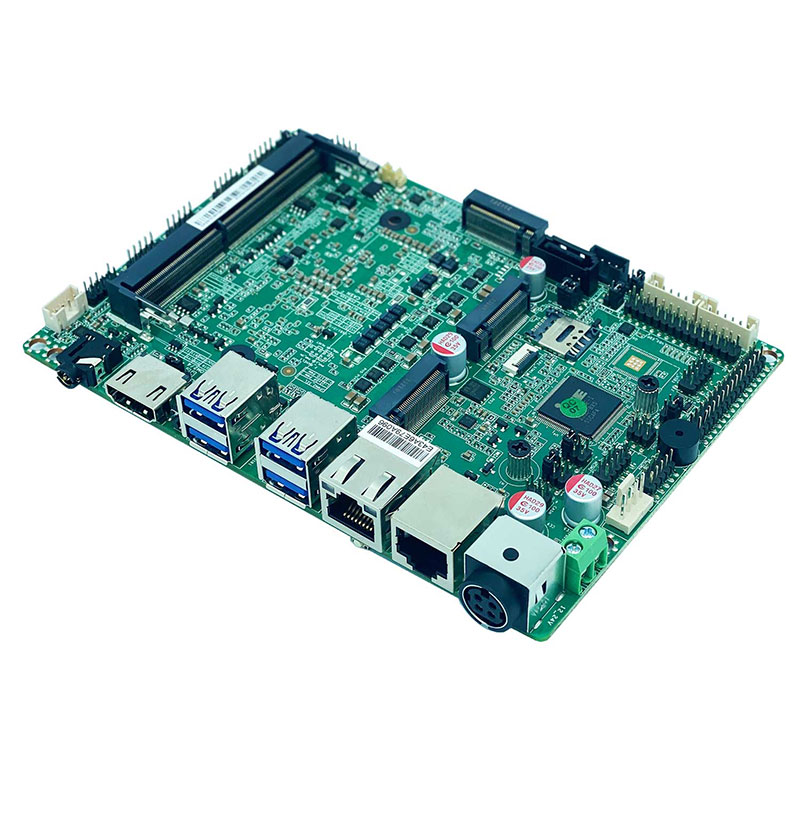

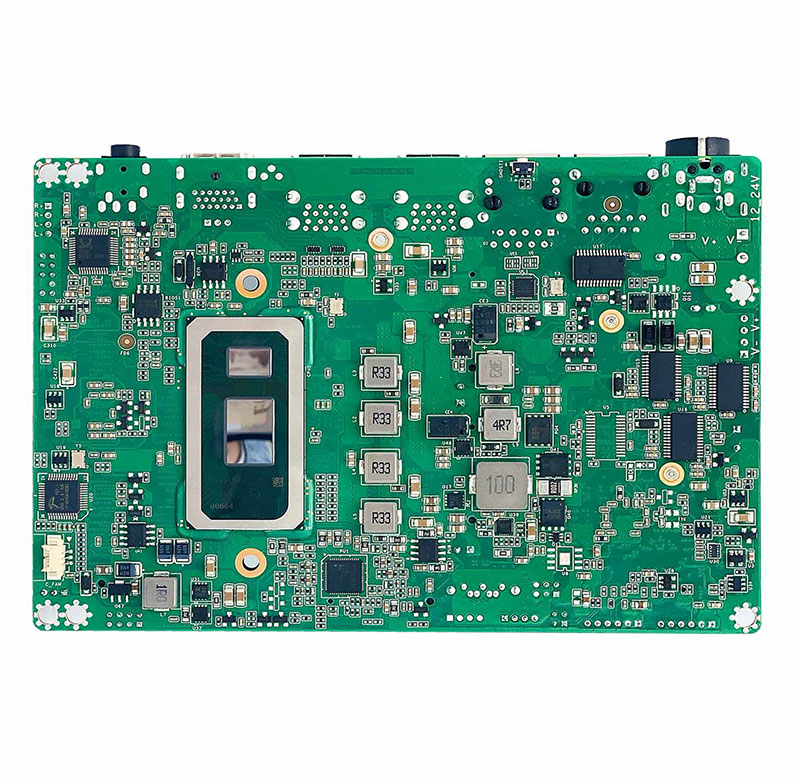

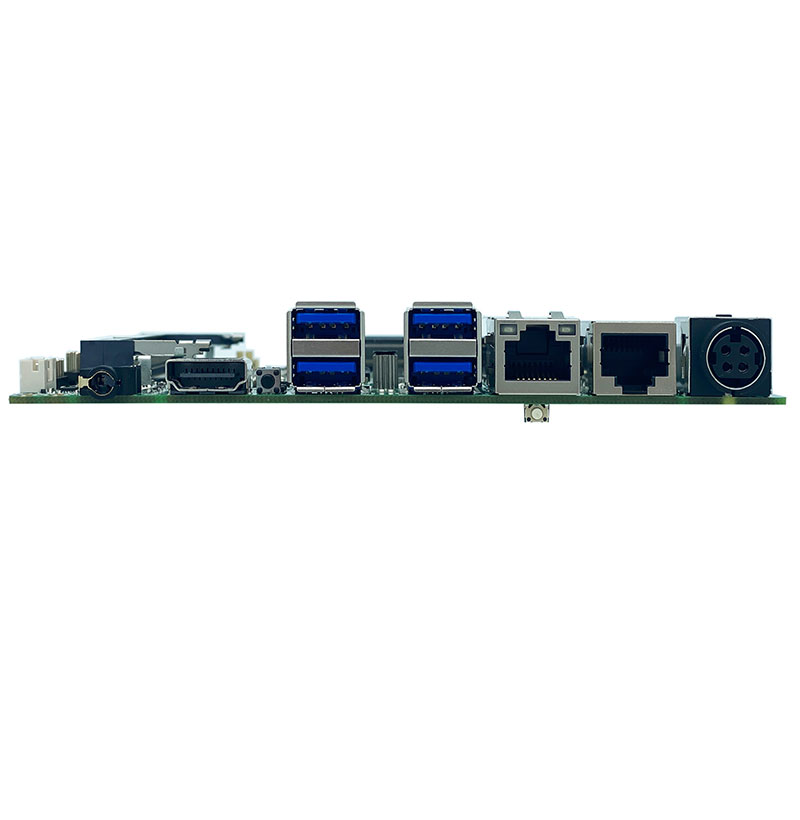

WKEC3-WHLUTB-4C1L
Intel® 8/10th Generation Intel ® Core™ U-series Wiskeylake-U and Coffeelake-U 15~28W cpu，FCBGA1528；Intel® SOC；1*SO-DIMM；4*USB3.1；6*USB2.0；1*SATA3.0；4*COM232；3*M.2；Supports one-click system restoration, and supports system backup and restoration with shortcut keys
processor：Intel® 8/10th Generation Intel ® Core™ U-series Wiskeylake-U and Coffeelake-U 15~28W cpu，FCBGA1528
chipset：Intel® SOC
Display: Intel® UHD Graphics
memory：1*SO-DIMM DDR4 2400/2666MHz Max 64GB
Display output：LVDS1/EDP1、EDP2、HDMI (Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M (Supports PCIex4 and SATA3 for SSD)
USB:4*USB3.1；6*USB2.0
supports 4*COM232
On board 1*RTL8111 gigabit network card
Expansion slot：1*M.2 Key A (Supports PCIe x1 and USB 2.0 for Wireless+Bluetooth)
Expansion slot：1*M.2 Key B （Supports SATA3 and USB for SSD or 4G） 1*SIM card slot
