| General | |
| CPU | Intel® Elkhart Lake J6412 J6413 Processor |
| Chipset | Intel® SOC |
| Memory | 1*SO-DIMM DDR4 3200MHz Max 16GB |
| Storage | 1*SATA3.0 1*M.2 Key M ( Supports PCIe or SATA SSD expansion) |
| Expansion Interface | 1*M.2 Key A （Supports WiFi+Bluetooth extension） 1*M.2 Key B (Supports 4G/5G expansion) 1*SIM card slot |
| BIOS | AMI BIOS |
| System | UEFI_Windows 10/Linux |

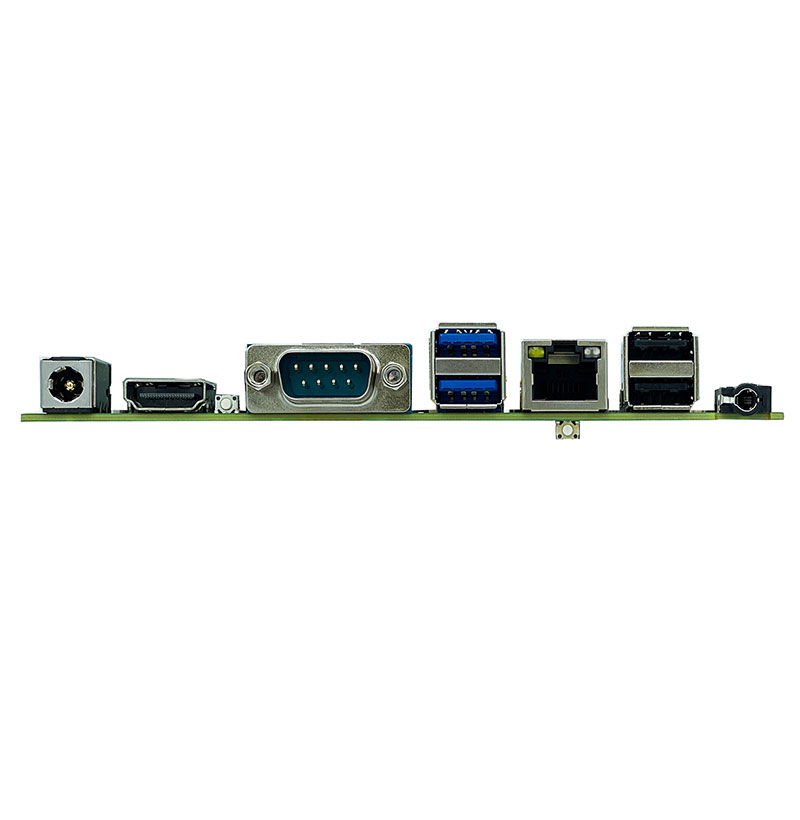

| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 6*COM232 (COM2 supports RS232/485 as an option) |
| USB | 2*USB 3.0, 9*USB 2.0 |
| Audio | Onboard audio decoding controller ALC269 (SPK support 2.2 W @ 4 Ω Max) |
| Others | 1*HDCIN Header 1*JVGA Header 6*COM Header 5*F_USB2.0 Header（Extensible 9*USB2.0） 1*SPEAKER Header 1*F-AUDIO Header 1*LVDS_EDP1 Header 1*EDP2 Header 1*HLPT_GPIO Heade 2*INVT Header 1*SATA interface 1*SATA_PWR Header 1*CPU_FAN Header 1*F_PANEL Header 1*JATX Header 1*JME Header |
| Display | |
| Display Interface | LVDS/EDP1、EDP2/VGA、HDMI(Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 102mmX146mm |
| Power Input | DC 12V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

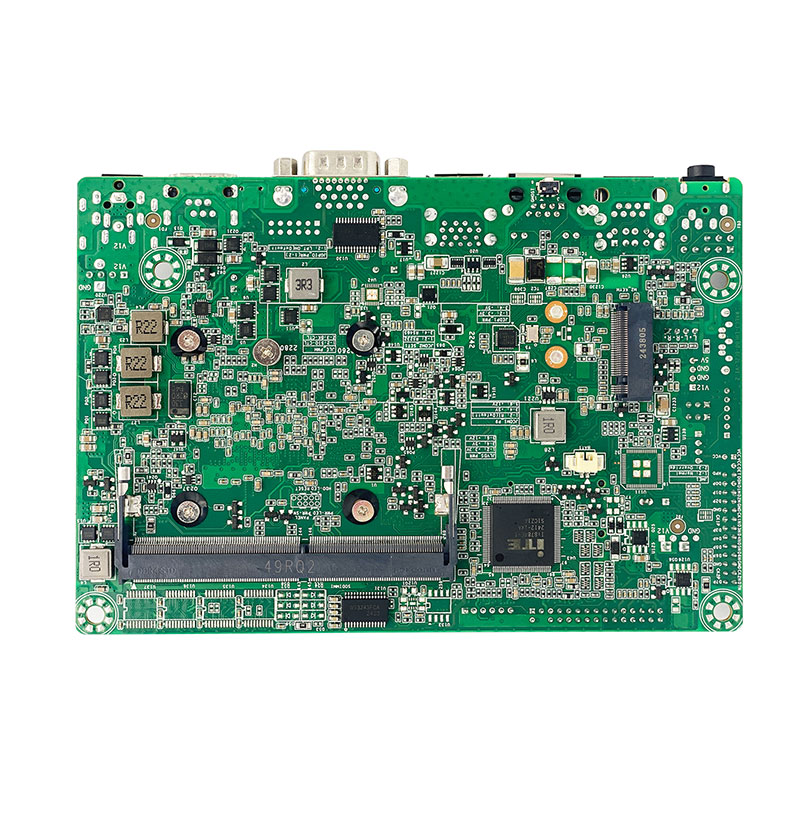

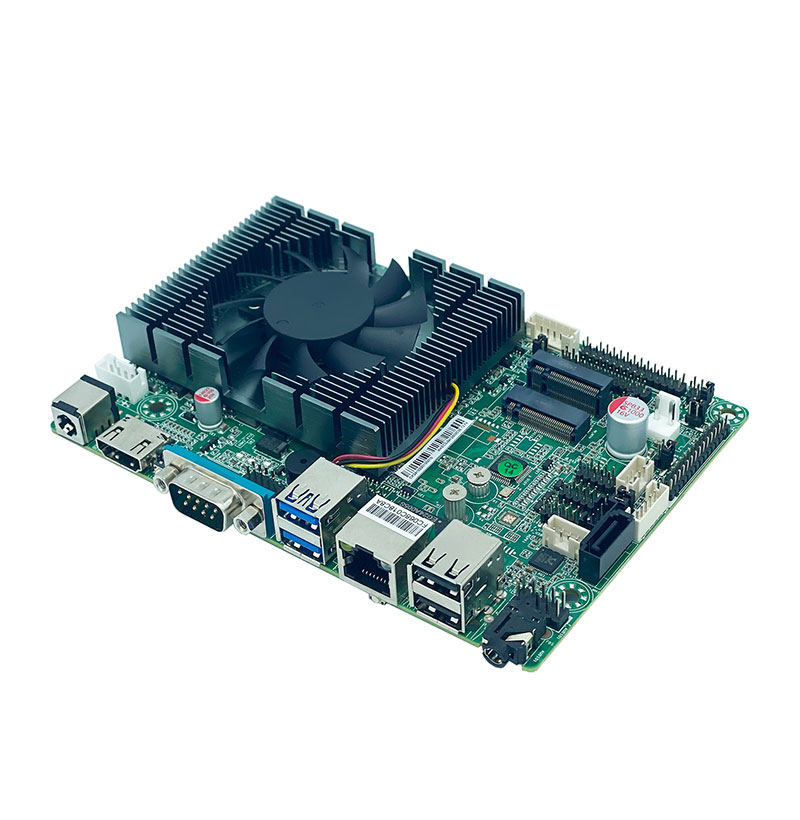

WKEC3-EHLB0-6C2L
Intel® Elkhart Lake J6412/J6413 Processor；1*SO-DIMM；2*USB3.0；9*USB2.0；1*SATA3.0；6*COM232；3*M.2；Supports one-click system restoration, and supports system backup and restoration with shortcut keys
processor：Intel® Elkhart Lake J6412/J6413 Processor
chipset：Intel® SOC
Display: Intel® UHD Graphics
memory：1*SO-DIMM DDR4 3200MHz Max 16GB
Display output：LVDS/EDP1、EDP2/VGA、HDMI(Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M ( Supports PCIe or SATA SSD expansion)
USB:2*USB3.0；9*USB2.0
supports 6*COM232 (COM2 supports RS232/485 as an option)
On board 1/2* RTL8111 gigabit network card
Expansion slot：1*M.2 Key A （Supports WiFi+Bluetooth extension）
Expansion slot：1*M.2 Key B (Supports 4G/5G expansion) 1*SIM card slot
