| General | |
| CPU | Intel® Elkhart Lake J6412 Processor |
| Chipset | Intel® SOC |
| Memory | 1*SO-DIMM DDR4 3200MHz Max16GB |
| Storage | 1*M.2 Key M(Supports PCIe & SATA SSD adaptive) |
| Expansion Interface | 1*M.2Key A (Supports Wifi+Bluetooth extension module ) |
| BIOS | AMI BIOS |
| System | UEFI_Windows 10/Linux |
| I/O Interface | |
| Ethernet | 1*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 2*COM232 |
| USB | 2*USB 3.0, 7*USB 2.0 |
| Audio | Onboard audio decoding controller ALC269+NS4251 (SPK support 3W@4Ω;1.7W@8Ω max) |
| Others | 1*HDCIN Header 2*COM Header 3*F_USB2.0 Header（Extensible 5*USB2.0） 1*LPT_PWR Header 1*HLPT Header 2*INVT Header 2*LVDS_EDP Header 1*CPU_FAN Header 1*HLOUT Header 1*HSPK Header 1*F_PANEL Header 1*JAT Header 1*JME Header |
| Display | |
| Display Interface | LVDS1/EDP1、LVDS2/EDP2 (Support 2 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 102mmX148mm |
| Power Input | DC 12V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

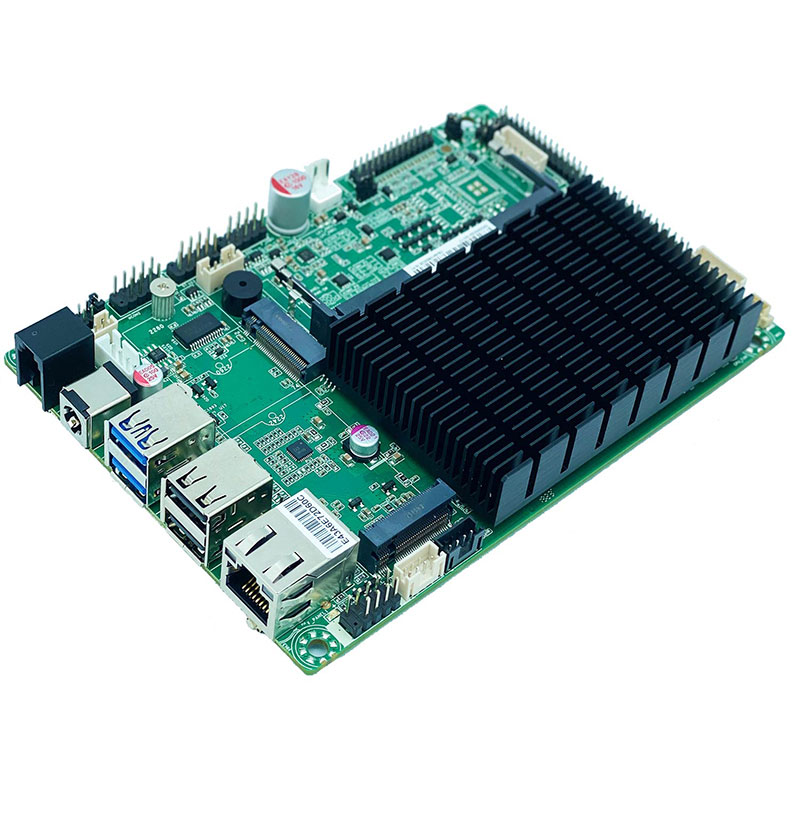

CB-EHLB0-2C
Intel® Elkhart Lake J6412 Processor ；Intel® SOC；1*SO-DIMM；2*USB3.0；7*USB2.0；2*COM232；2*M.2；1*LPT；1*RJ11；Supports one-click system restoration, and supports system backup and restoration with shortcut keys
processor：Intel® Elkhart Lake J6412 Processor
chipset：Intel® SOC
Display: Intel® UHD Graphics
memory：1*SO-DIMM DDR4 3200MHz Max16GB
Display output：LVDS1/EDP1、LVDS2/EDP2 (Support 2 display synchronous/asynchronous output)
storage：1*M.2 Key M(Supports PCIe & SATA SSD adaptive)
USB:2*USB3.0；7*USB2.0
supports 2*COM232
On board 1* RTL8111 gigabit network card
Expansion slot：1*M.2Key A (Supports Wifi+Bluetooth extension module )
