| General | |
| CPU | Intel® 11th Tiger Lake i7/i5/i3 FCBGA1449 Processor |
| Chipset | Intel® SOC |
| Memory | 2*SO-DIMM DDR4 3200MHz Max 64GB |
| Storage | 1*SATA3.0 1*M.2 Key M (Supports SATA3.0 and PCIe Gen4 x4 for SSD) |
| Expansion Interface | 1*M.2 Key E （Supports WiFi+Bluetooth extension, support WiFi6） 1*Mini PCIe (Supports Wifi+Bluetooth extension module ) 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 10/11 32bit/64bit/Linux |
| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |

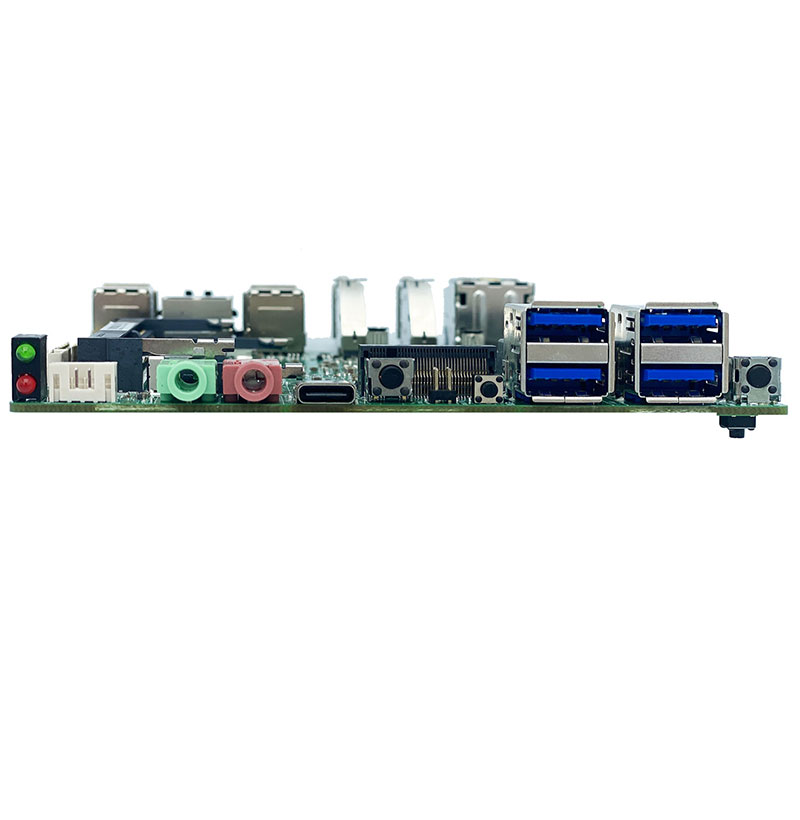

| USB | 4*USB 3.2，5*USB 2.0，1*Type-C USB |
| Audio | Onboard audio decoding controller ALC269 (SPK support 2.2 W @ 4 Ω Max) |
| Others | 1*HDCIN Header 1*C_FAN Header 1*JATX Header 1*CTPM Header 1*JESPI1 Header 1*R_USB3 Header （Extensible 1*USB2.0） 1*SPEAKER Header 1*F_PANEL Header 1*SATA3.0 interface |
| Display | |

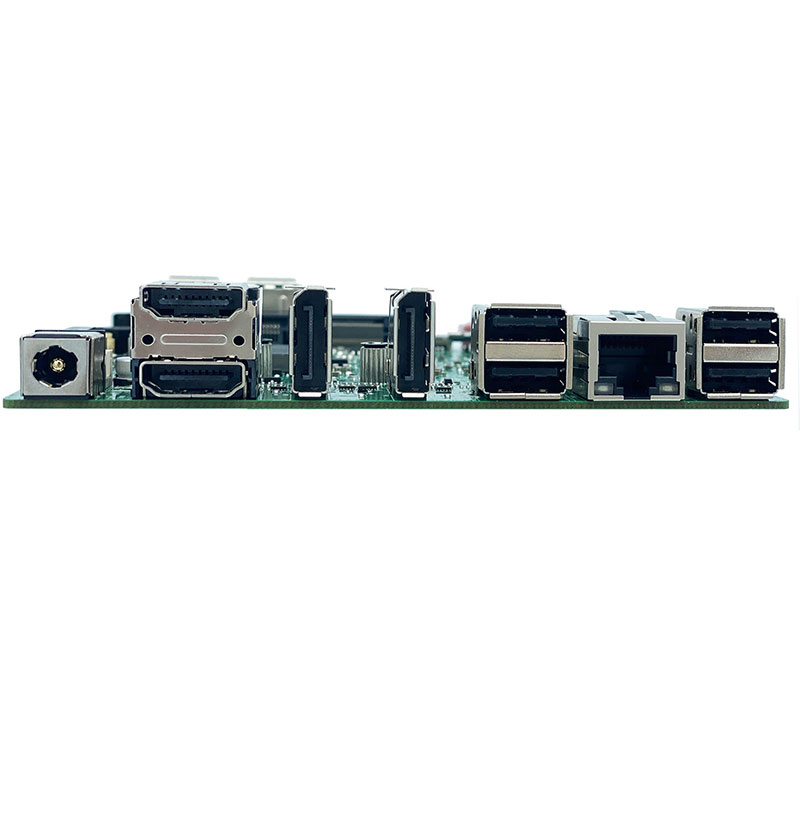

| Display Interface | 2*HDMI、2*DP (Support 4 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 121mmX121mm |
| Power Input | DC 12V-19V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

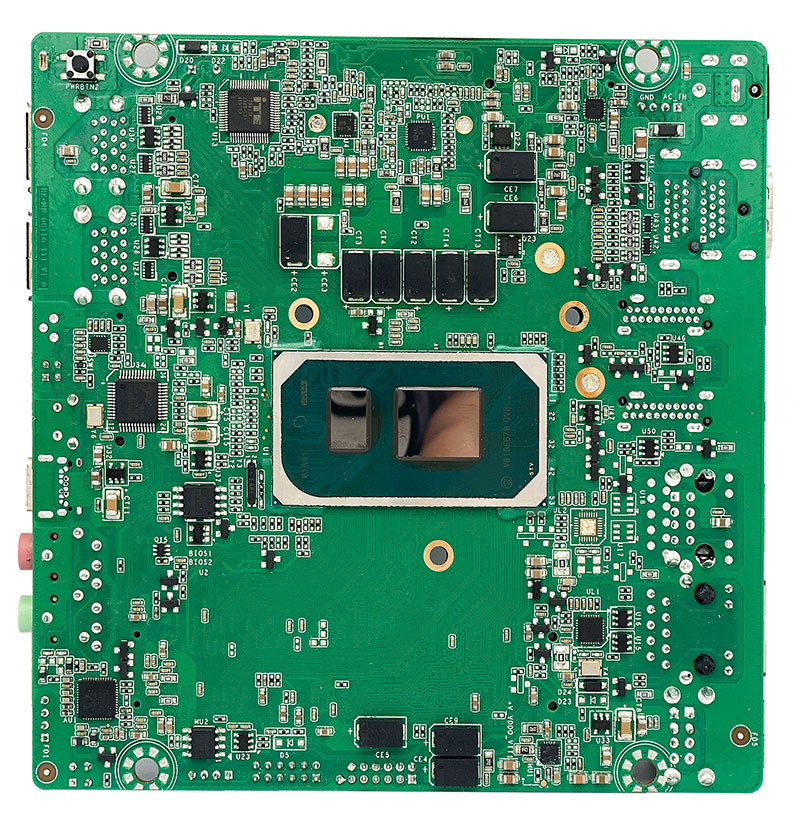

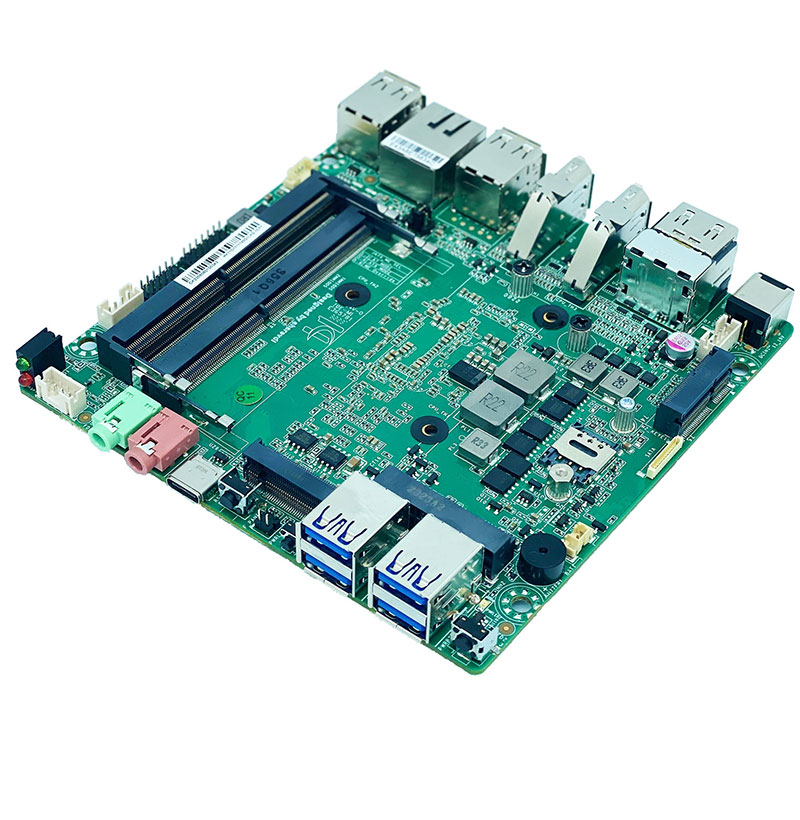

WKNANO-TGLB0
Intel® 11th Tiger Lake i7/i5/i3 FCBGA1449 Processor；Intel® SOC；2*SO-DIMM；4*USB3.2；5*USB2.0；1*Type-C USB；1*SATA3.0；2*M.2；1*TPM
processor：Intel® 11th Tiger Lake i7/i5/i3 FCBGA1449 Processor
chipset：Intel® SOC
Display: Intel® UHD Graphics
memory：2*SO-DIMM DDR4 3200MHz Max 64GB
Display output：2*HDMI、2*DP (Support 4 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M (Supports SATA3.0 and PCIe Gen4 x4 for SSD)
USB:4*USB 3.2，5*USB 2.0，1*Type-C USB
On board 1/2 * RTL8111 gigabit network card
Expansion slot：1*M.2 Key E （Supports WiFi+Bluetooth extension, support WiFi6）
Expansion slot：1*Mini PCIe (Supports Wifi+Bluetooth extension module ) 1*SIM card slot
