| General | |

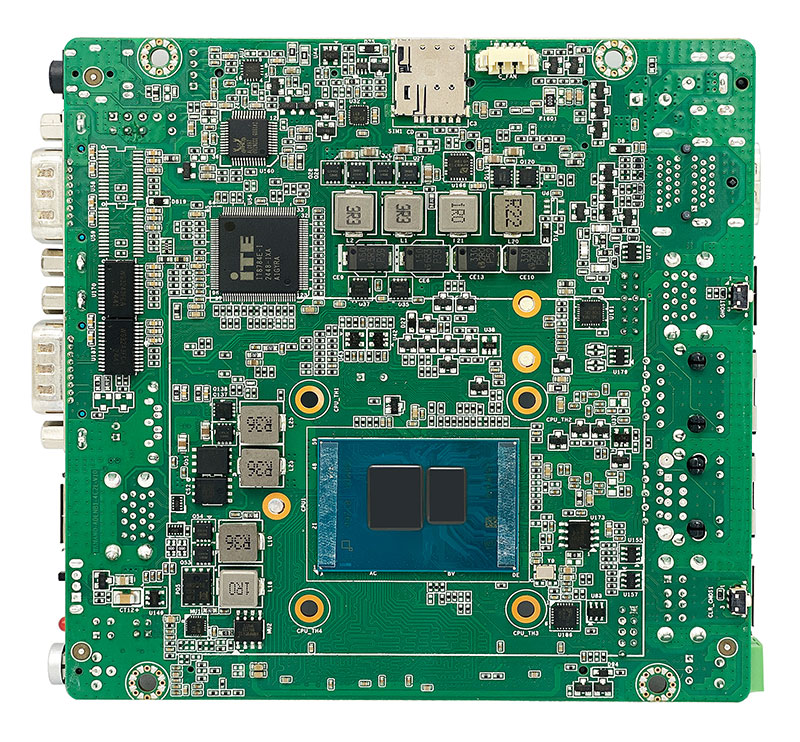

| CPU | Intel® Alder Lake-N N50, N97, N100, Atom® x7425E, Core i3-N300 CPU；FCBGA1264 |
| Chipset | Intel® SOC |
| Memory | 1*SO-DIMM DDR4 3200MHz Max 16GB |
| Storage | 1*SATA3.0 1*M.2 Key M (Supports PCIe3.0 2X/SATA3.0 adaptive) |
| Expansion Interface | 1*M.2 Key E （Supports WiFi+Bluetooth extension, support CNVI） 1*M.2 Key B (Supports 4G/5G expansion) 1*SIM card slot |
| BIOS | AMI BIOS |
| System | Windows 10/11 32bit/64bit/Linux |

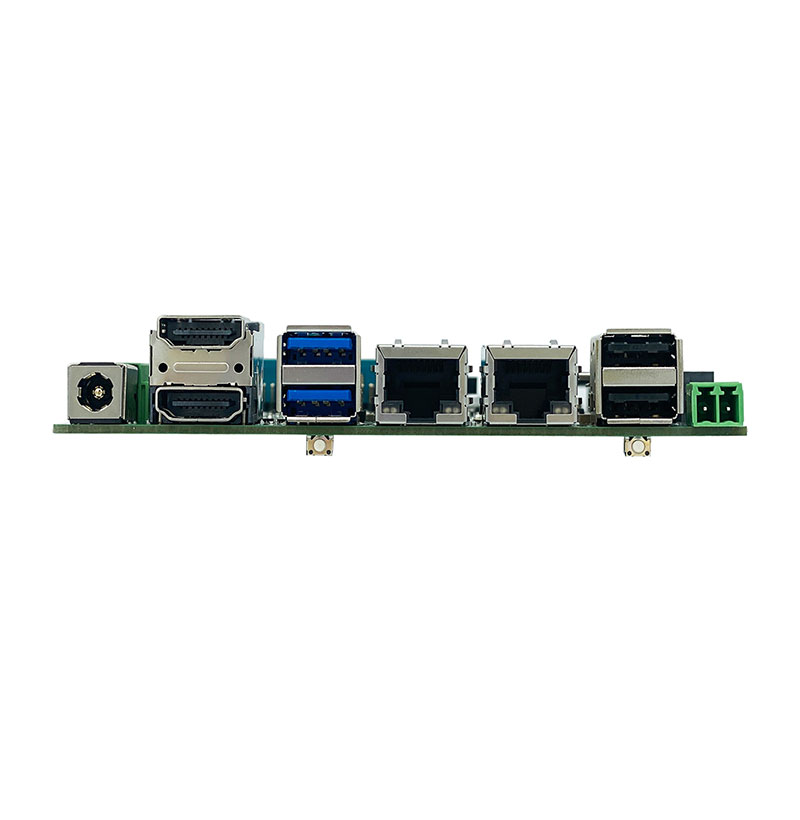

| I/O Interface | |
| Ethernet | 1/2*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |

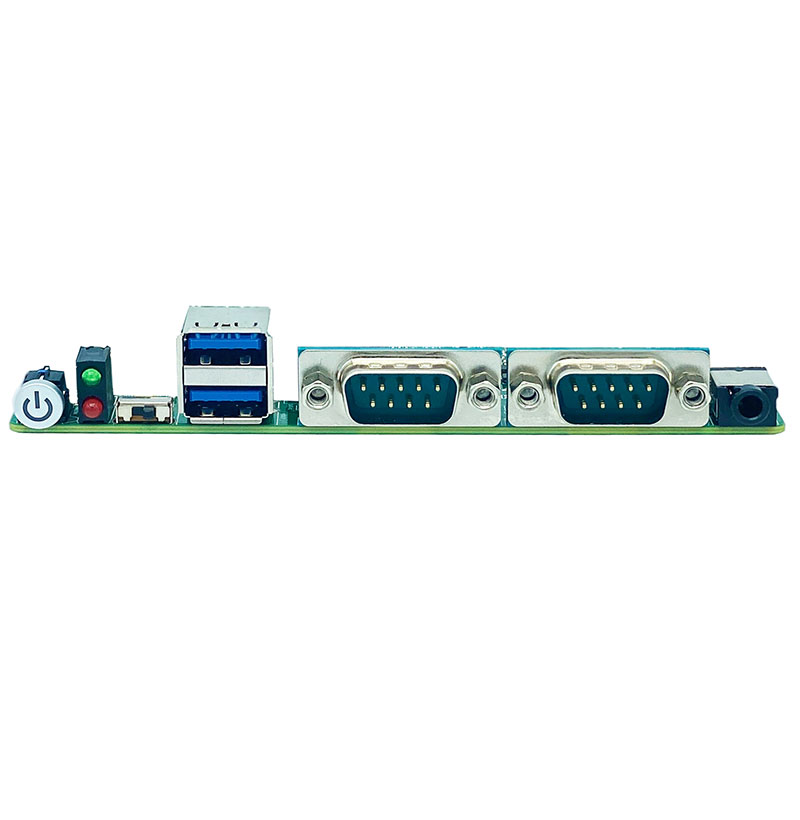

| Serial | 4*COM232 (COM1/COM2 supports RS232/485 as an option) |
| USB | 4*USB 3.0，4*USB 2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |

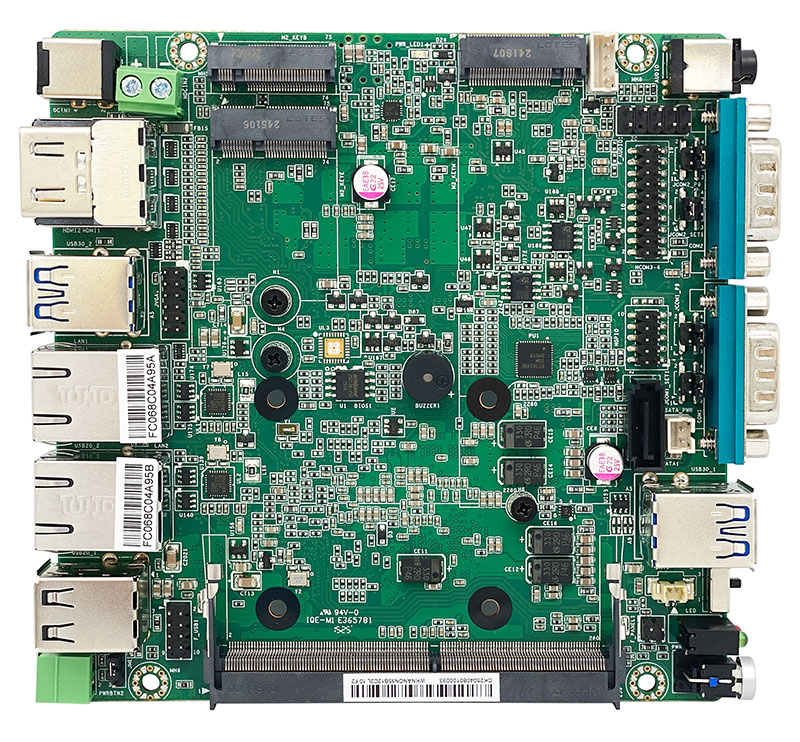

| Others | 1*2PIN Header 1*C_FAN Header 1*F_USB1 Header （Extensible 2*USB2.0） 1*JVGA Header 1*F_AUDIO Header 1*SPEAKER Header 2*COM Header 1*HGPIO Header 1*SATA3.0 interface 1*SATA_PWR Header 1*F_PANEL Header 1*JME Header |
| Display | |
| Display Interface | 2*HDMI、JVGA (Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 121mmX121mm |
| Power Input | DC 12V-19V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

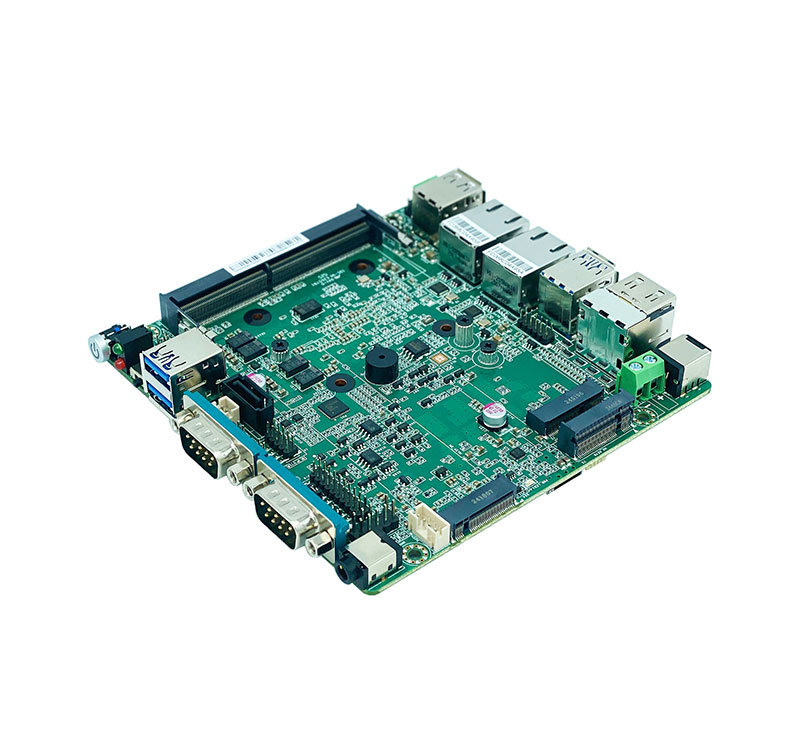

WKNANO-ADLNB1-4C2L
Intel® Alder Lake-N N50, N97, N100,N95, Atom® x7425E, Core i3-N300 CPU；FCBGA1264；Intel® SOC；1*SO-DIMM；4*USB3.0；4*USB2.0；1*SATA3.0；4*COM232；3*M.2；Supports one-click system restoration, and supports system backup and restoration with shortcut keys
processor：Intel® Alder Lake-N N50, N97, N100,N95, Atom® x7425E, Core i3-N300 CPU；FCBGA1264
chipset：Intel® SOC
Display: Intel® UHD Graphics
memory：1*SO-DIMM DDR4 3200MHz Max 16GB
Display output：2*HDMI、JVGA (Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M (Supports PCIe3.0 2X/SATA3.0 adaptive)
USB:4*USB 3.0，4*USB 2.0
supports 4*COM232 (COM1/COM2 supports RS232/485 as an option)
On board 1/2 * RTL8111 gigabit network card
Expansion slot：1*M.2 Key E （Supports WiFi+Bluetooth extension, support CNVI）
Expansion slot：1*M.2 Key B (Supports 4G/5G expansion) 1*SIM card slot
