| General | |
| CPU | Intel® 4/5th Generation Intel ® Core™ U-series Processor |
| Chipset | Intel® SOC |
| Memory | 1*SO-DIMM DDR3L 1600/1333/1066MHZ Max 16GB |
| Storage | 1*mSATA |
| Expansion Interface | 1*Mini PCIe (Supports Wifi+Bluetooth /4G expansion modules) |
| BIOS | AMI BIOS |
| System | Windows 7/10/11 32bit/64bit/Linux |

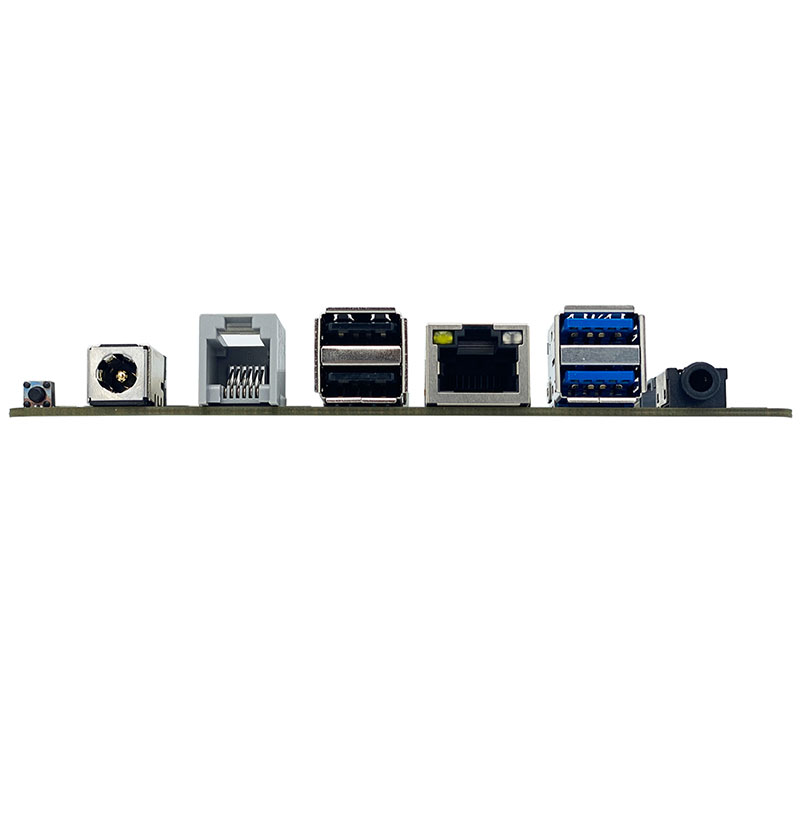

| I/O Interface | |
| Ethernet | 1*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 2*COM232 (Choose to use either JCOM2 or RJ11, with RJ11 as the default,Port RJ11 is for COM function) |
| USB | 2*USB 3.0，5*USB 2.0 |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*JSPR1 Header 1*LPT Header 1*C_FAN Header 2*COM232 Header (Choose to use either JCOM2 or RJ11, with RJ11 as the default,Port RJ11 is for COM function) 1*PWRBTN1 1*JFP1 Header 3*JUSB Header（Extensible 3*USB2.0） 1*LVDS1_EDP2 1*EDP 1*BKCL Header 1*LPT_PWR Header |
| Display | |
| Display Interface | EDP1、LVDS/EDP2 (Support 2 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 118mmx125mm |
| Power Input | DC 12V-24V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

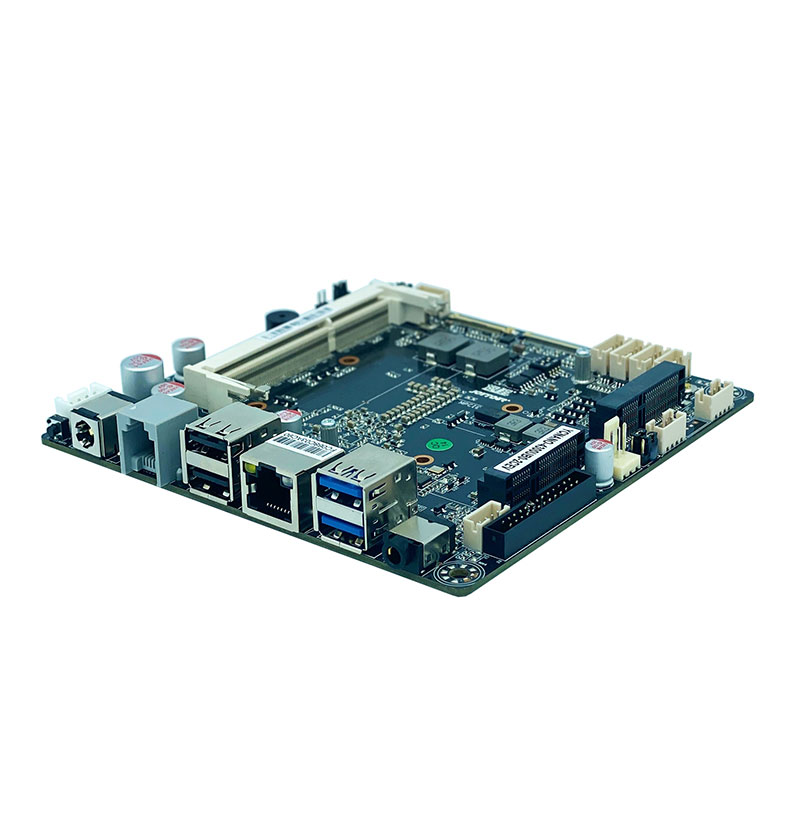

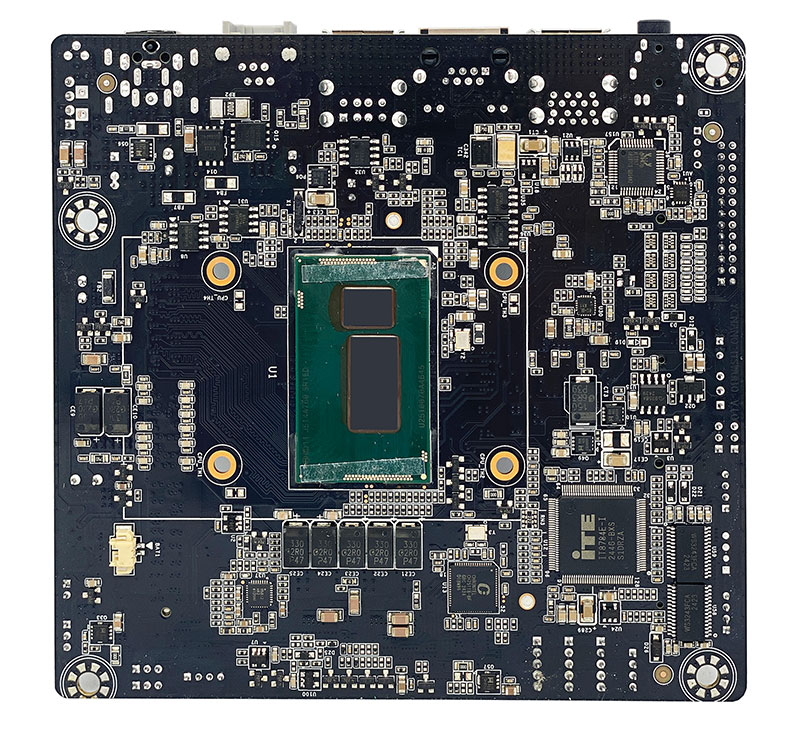

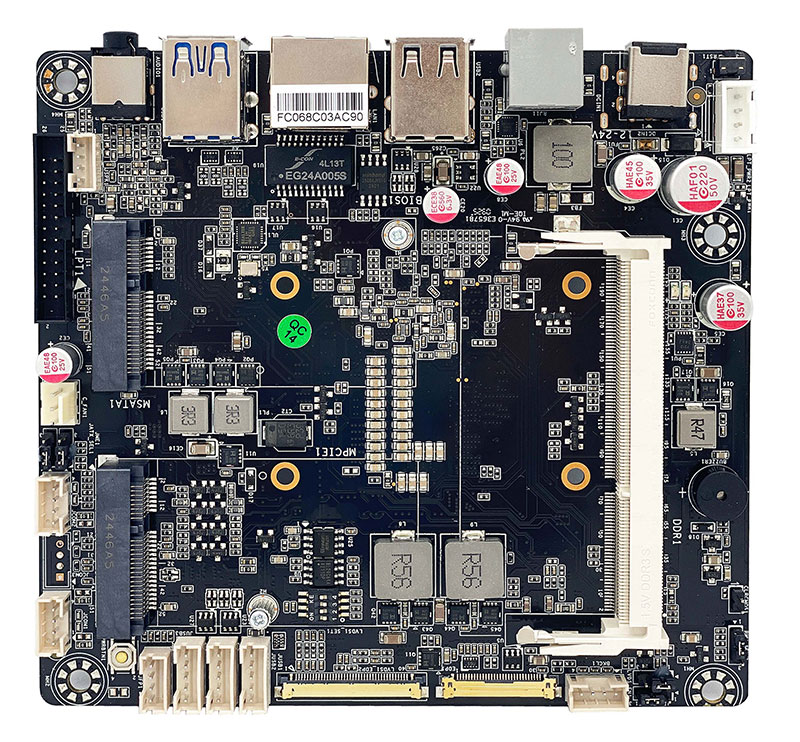

WKNANO-HSWB0-2C1L
Intel® 4/5th Generation Intel ® Core™ U-series Processor；Intel® SOC；1*SO-DIMM；2*USB3.0；5*USB2.0；1*mSATA；2*COM232；1*LPT
processor：Intel® 4/5th Generation Intel ® Core™ U-series Processor
chipset：Intel® SOC
Display: Intel® HD Graphics
memory：1*SO-DIMM DDR3L 1600 /1333/1066MHZ Max 16GB
Display output：EDP1、LVDS/EDP2 (Support 2 display synchronous/asynchronous output)
storage：1*mSATA
USB:2*USB 3.0，5*USB 2.0
supports 2*COM232；
On board 1 * RTL8111 gigabit network card
Expansion slot：1*Mini PCIe (Supports Wifi+Bluetooth /4G expansion modules)
