| General | |
| CPU | Intel® 12/13th CoreTM i3/i5/i7 or Celeron®Processor； |
| Chipset | Intel® SOC |
| Memory | 2*SO-DIMM DDR5 4800MHz Max 64GB |
| Storage | 1*SATA3.0 1*M.2 Key M (Supports SATA3.0&PCIe X4 adaptive) |
| Expansion Interface | 1*M.2 Key E （Supports WiFi+Bluetooth extension, supports CNVI and WiFi6） |
| BIOS | AMI BIOS |
| System | Windows 10/11 32bit/64bit/Linux |
| I/O Interface | |
| Ethernet | 1/2*Intel i226-V 2.5GBE Controller，RJ45 |

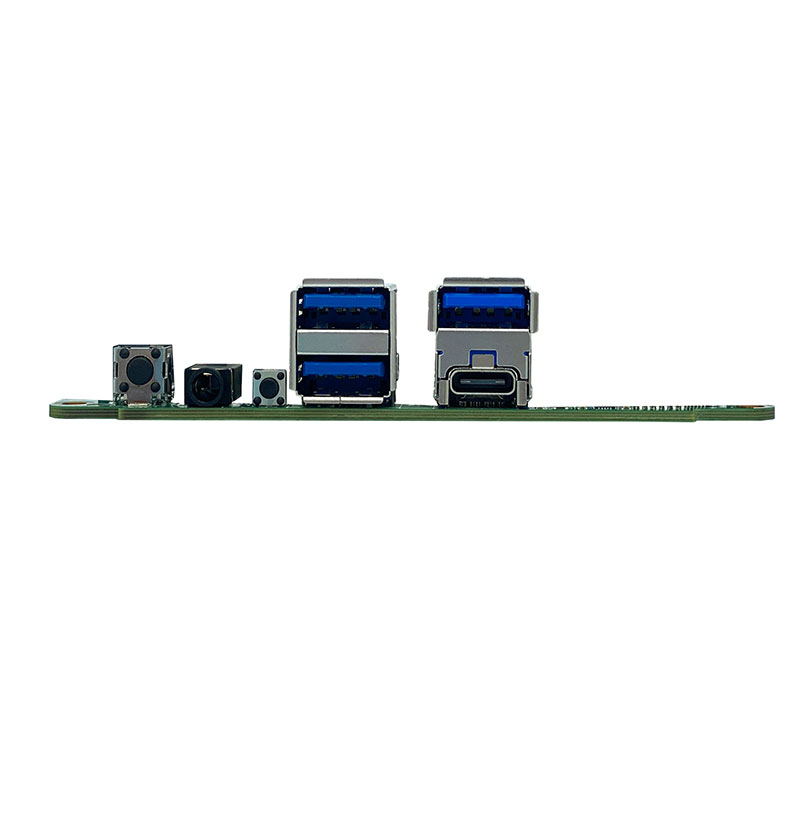

| USB | 3*USB3.0；2/4*USB2.0；1*Type-C USB3.0 |
| Audio | Onboard audio decoding controller ALC897 |
| Others | 1*C_FAN Header 1*F_USB1 Header （Extensible 2*USB2.0） 1*SATA interface |
| Display | |

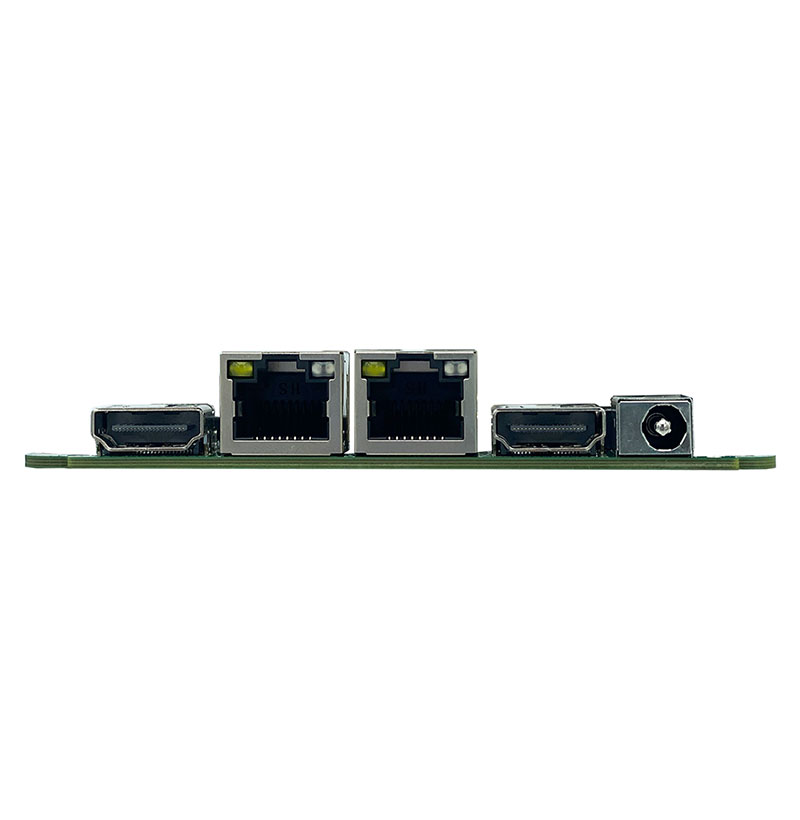

| Display Interface | 2*HDMI、1*Type-C (Support 3 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 100mmX106mm |
| Power Input | DC 12V-19V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

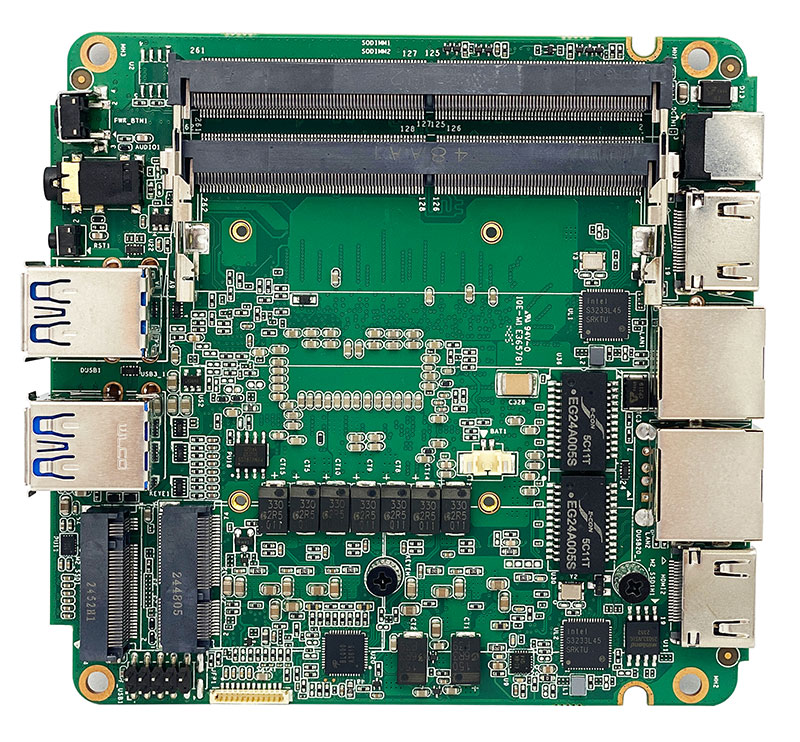

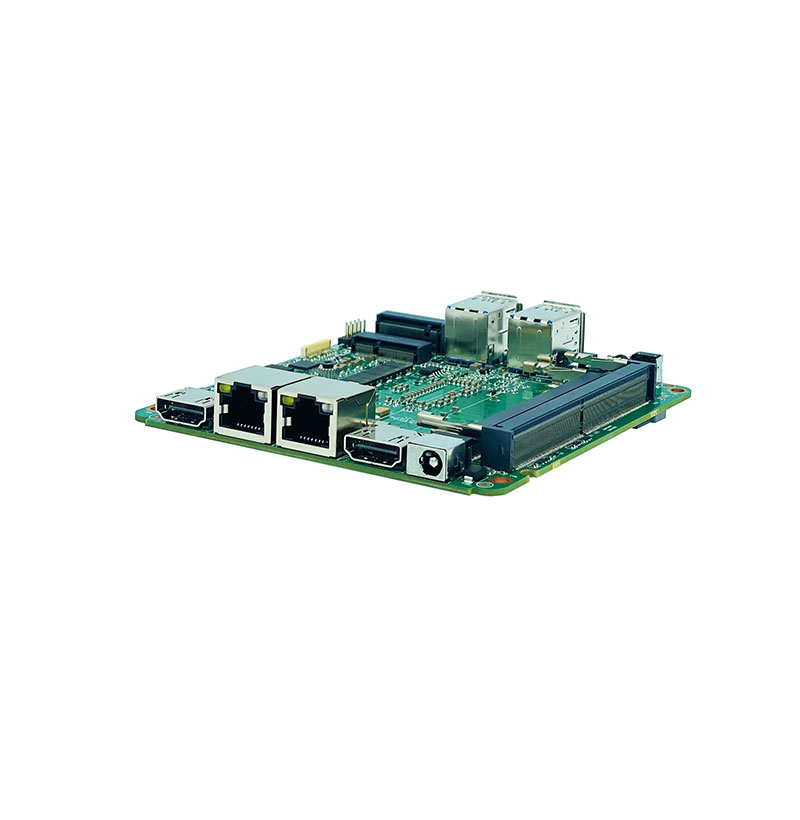

WKNUC-ADLB0
Intel® 12/13th CoreTM i3/i5/i7 or Celeron®Processor；Intel® SOC；2*DDR5；3*USB3.0；2/4*USB2.0；1*Type-C USB3.0；1*SATA3.0；2*M.2

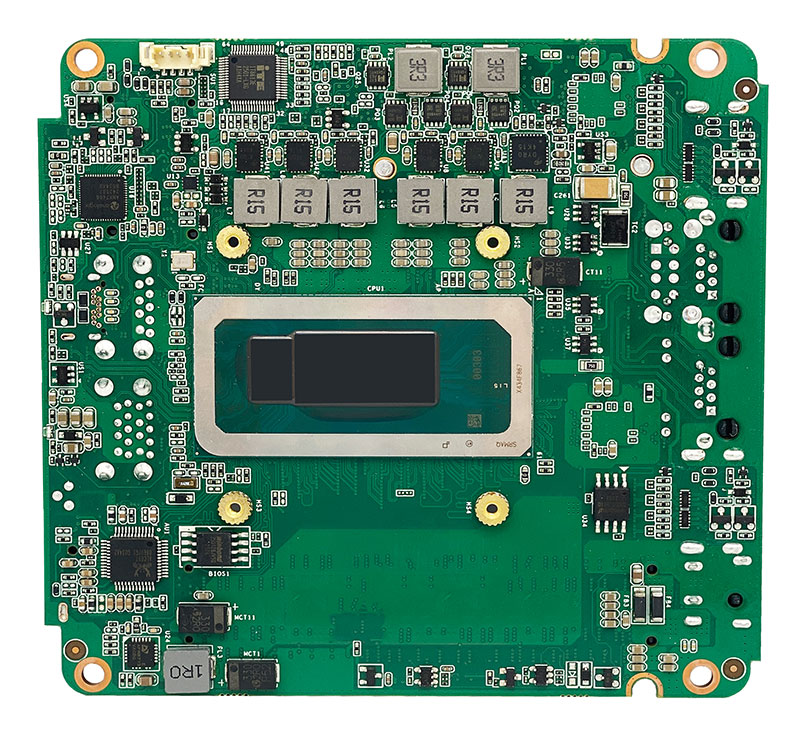

processor：Intel® 12/13th CoreTM i3/i5/i7 or Celeron®Processor；
chipset：Intel® SOC
Display: Intel® UHD Graphics
memory：2*SO-DIMM DDR5 4800MHz Max 64GB
Display output：2*HDMI、1*Type-C (Support 3 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M (Supports SATA3.0&PCIe X4 adaptive)
USB:3*USB3.0；2/4*USB2.0；1*Type-C USB3.0
On board 1/2 * Intel i226-V 2.5GBE network card
Expansion slot：1*M.2 Key E （Supports WiFi+Bluetooth extension, supports CNVI and WiFi6）
