| General | |
| CPU | Intel® 12/13th CoreTM Alder lake-H i3/i5/i7 or Celeron®Processor |
| Chipset | Intel® SOC |
| Memory | 2*SO-DIMM DDR5 4800MT/s Max 64GB |
| Storage | 1*SATA3.0 1*M.2 Key M (Support SATA3 and PCIe Gen4 x4 for SSD) |
| Expansion Interface | 1*M.2 Key E （Supports WiFi+Bluetooth extension, CNvi and PCIe WiFi6） |
| BIOS | AMI BIOS |
| System | Windows 10/11 32bit/64bit/Linux |
| I/O Interface | |
| Ethernet | 1*Realtek® RTL8111 1Gbps Ethernet Controller，RJ45 |
| Serial | 1*RS232 |
| USB | 4*USB3.2；4*USB2.0；1*Type-C |
| Audio | Onboard audio decoding controller ALC897 + NS4251 default power amplifier support 3 w @ 4 Ω; 1.7W@8Ω max |
| Others | 1*6PIN ATXPWR Header（Graphics card power input interface） 1*SATA3.0 interface 1*HD_PWR Header 1*LVDS_EDP Header 1*INVT Header 1*BKCL Header 1*F_USB1 Header（Expandable 2*USB2.0） 1*C_FAN Header 1*S_FAN Header 1*F_USB32 Header（Expandable 2*USB3.2） 1*COM232 Header 1*F_AUDIO Header 1*HSPK Header 1*JATX Header 1*JFP1 Header |
| Display | |

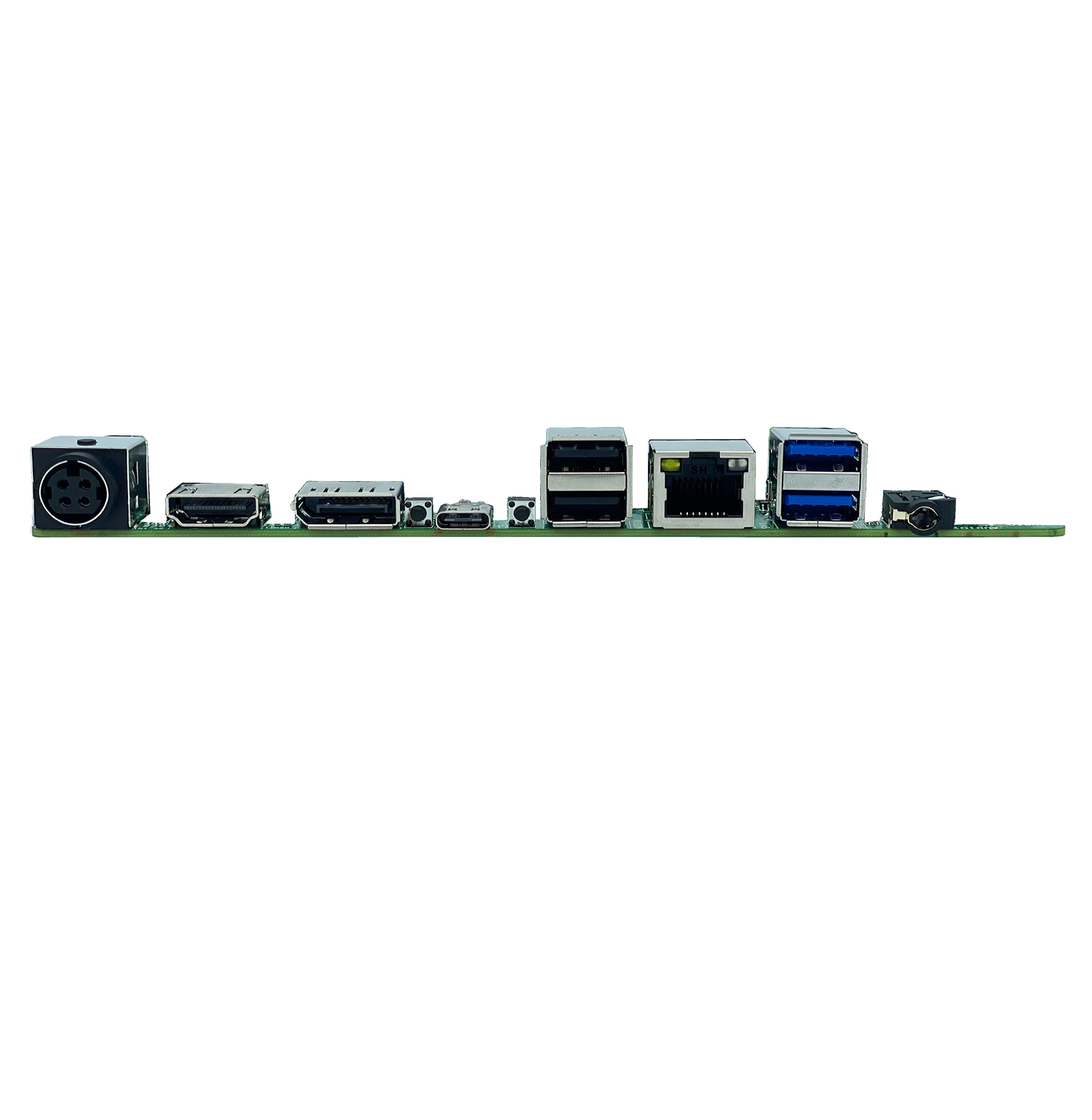

| Display Interface | LVDS/EDP、HDMI1、DP、HDMI2、1*Type-C (Support 4 display synchronous/asynchronous output) |
| Mechanical & Environment | |
| Dimension | 170X170MM |
| Power Input | DC 12V~19V input power supply |
| Temperature | Operation: 0℃~60℃, Storage: -20℃~75℃ |
| Relative Humidity | 0% ~ 95%, non-condensing |

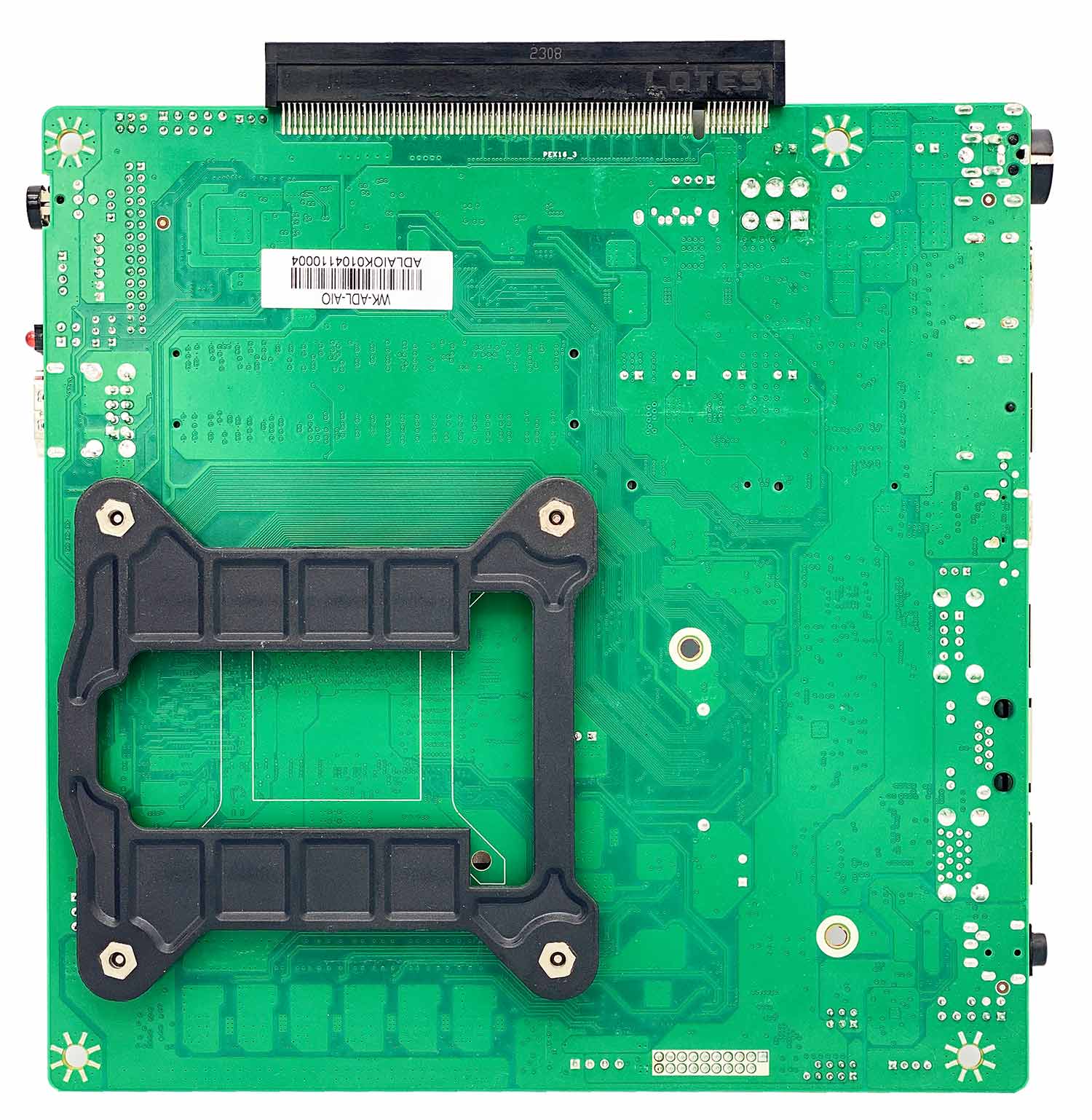

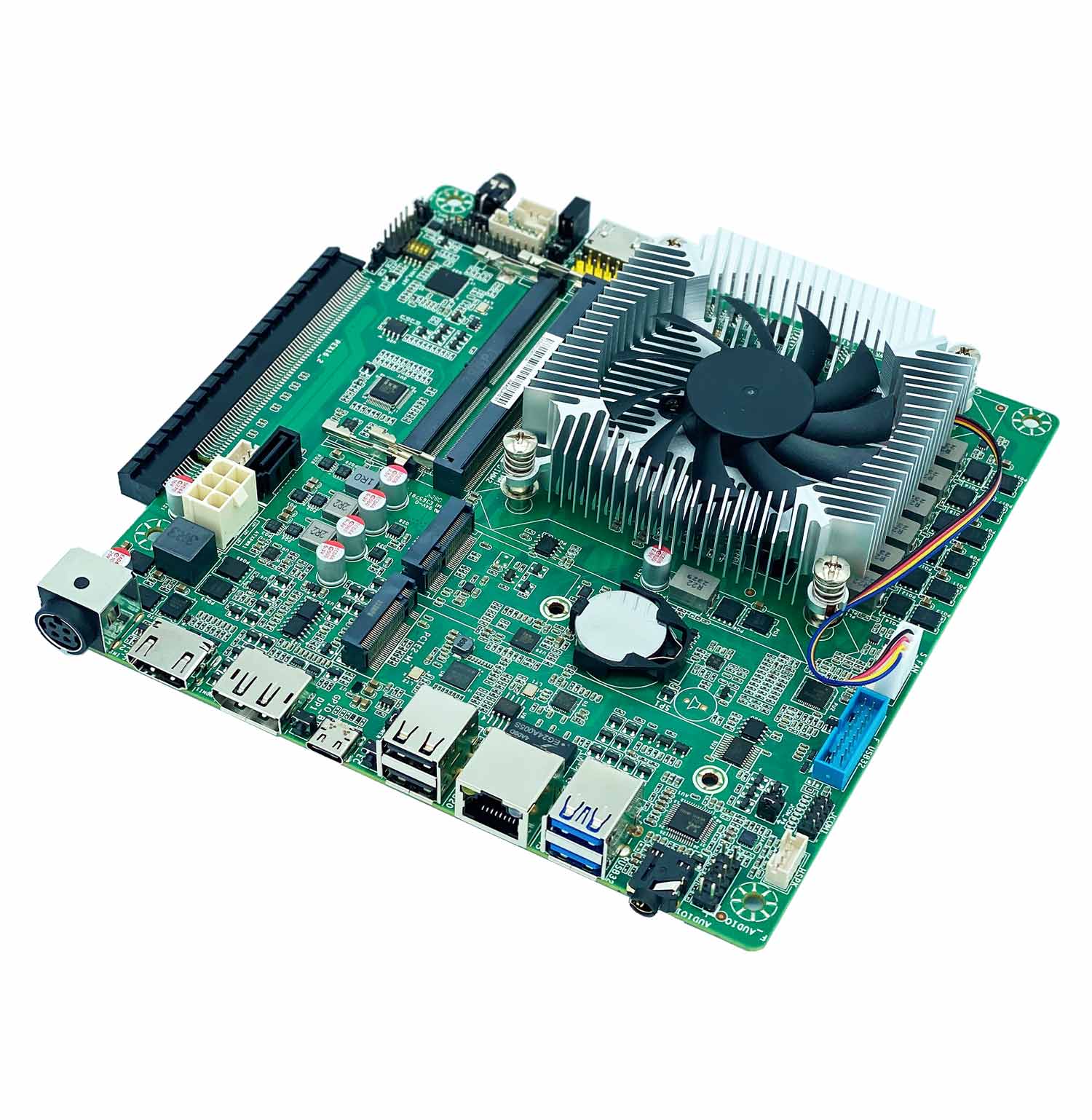

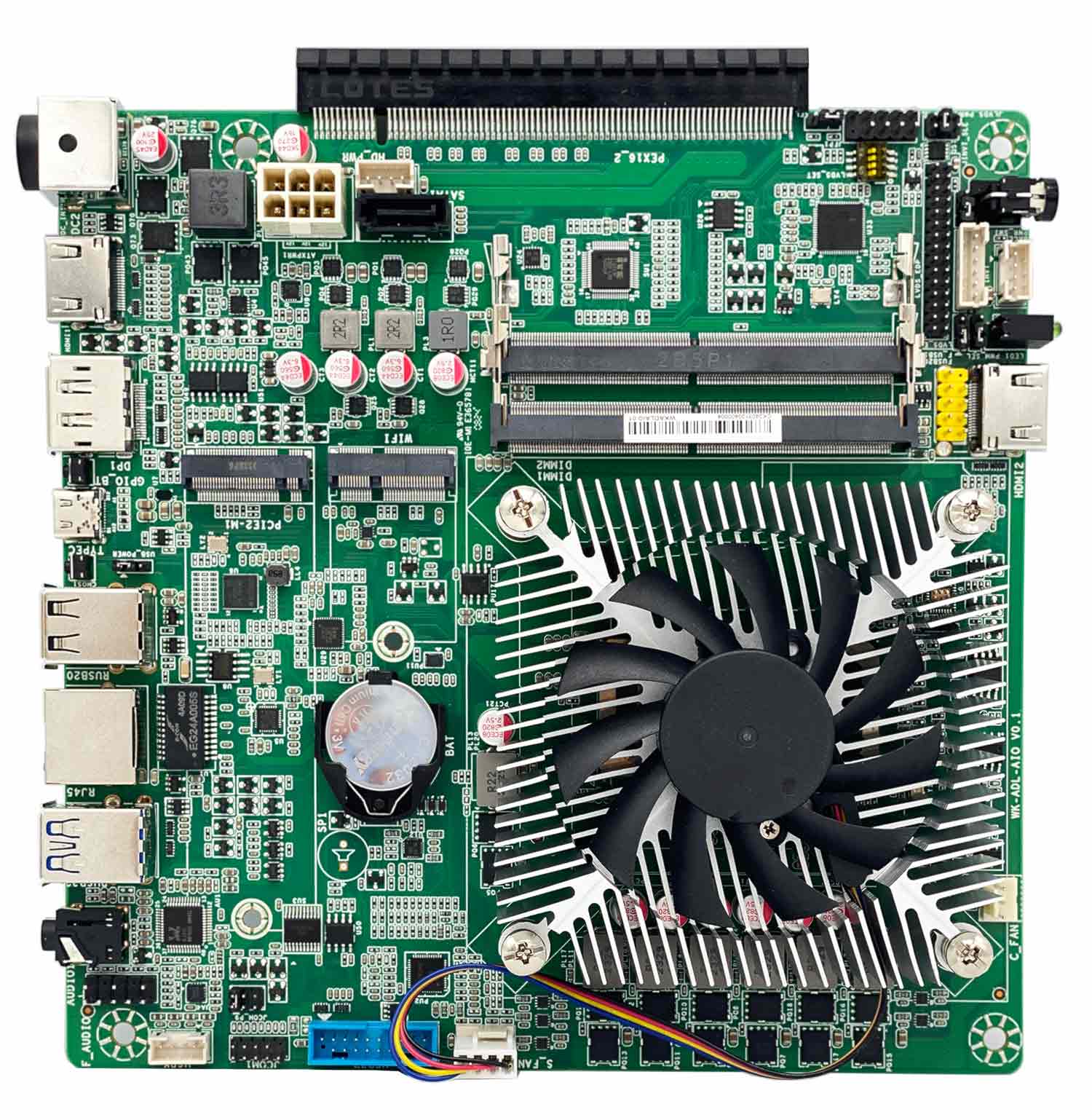

WK-ADL-AIO
Intel® 12/13th CoreTM Alder lake-H i3/i5/i7 or Celeron®Processor；Intel® SOC；2*SO-DIMM DDR5；4*USB3.2；4*USB2.0；1*Type-C；1*SATA3.0；1*COM232；2*M.2；1*PCIE X 8 expansion slot
processor：Intel® 12/13th CoreTM Alder lake-H i3/i5/i7 or Celeron®Processor
chipset：Intel® SOC
Display: Intel® Iris® Xe Graphics eligible
memory：2*SO-DIMM DDR5 4800MT/s Max 64GB
Display output：LVDS/EDP、HDMI1、DP、HDMI2、1*Type-C (Support 4 display synchronous/asynchronous output)
storage：1*SATA3.0；1*M.2 Key M (Support SATA3 and PCIe Gen4 x4 for SSD)
USB:4*USB3.2；6*USB2.0
support 1*COM232
On board 1 * RTL8111 gigabit network card
Expansion slot：1*M.2 Key E （Supports WiFi+Bluetooth extension, Supports CNvi and PCIe WiFi6）
